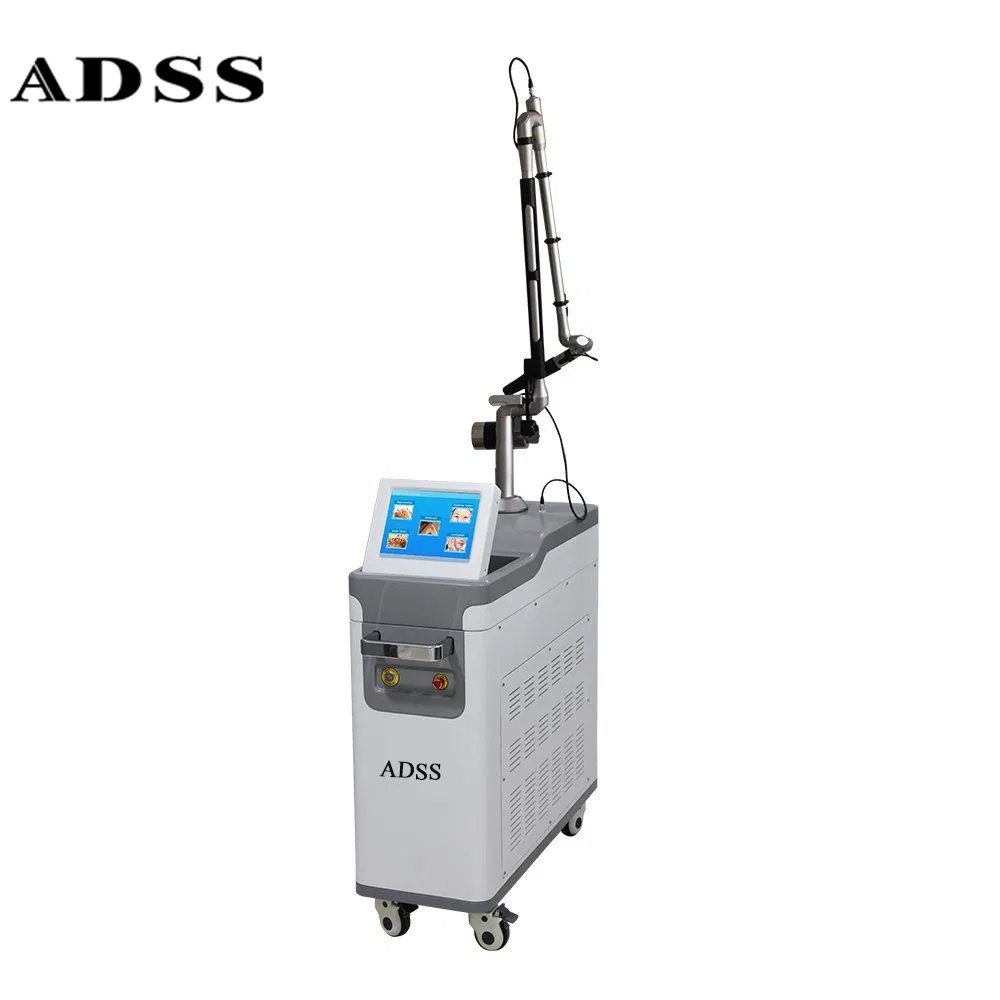

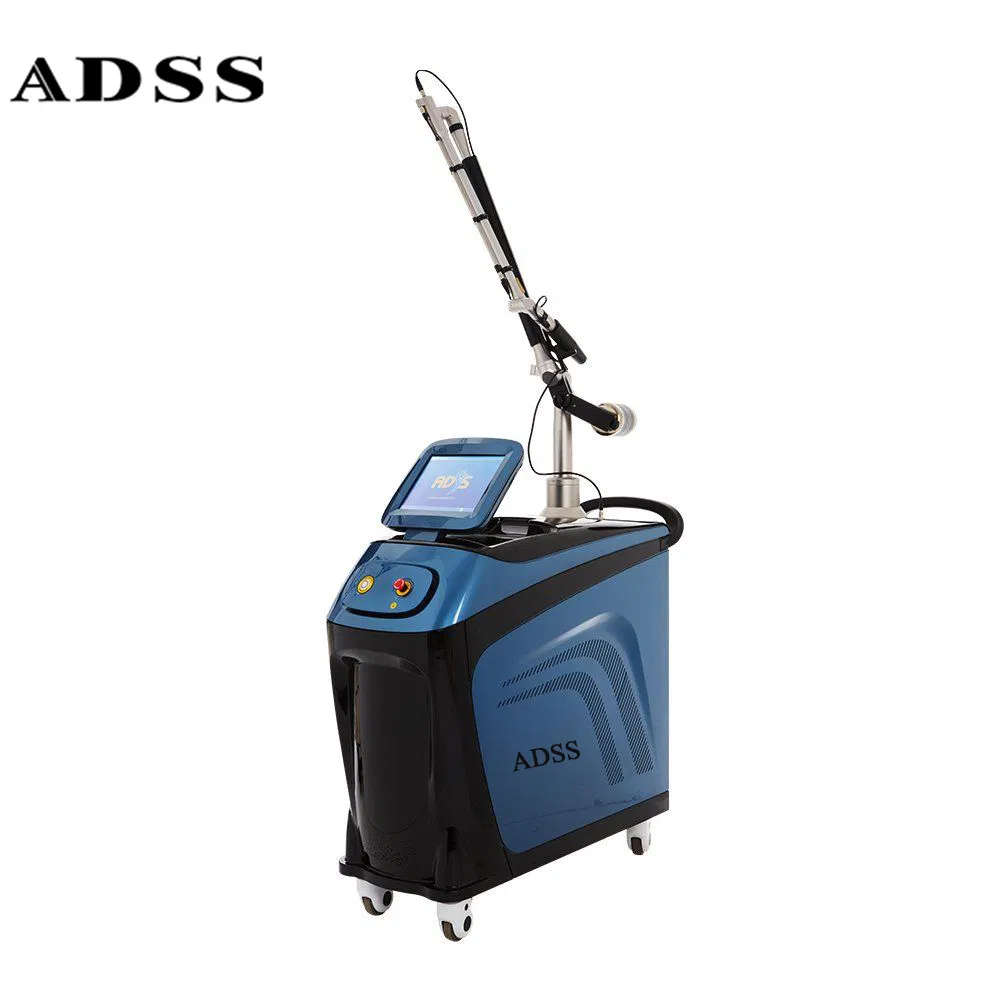

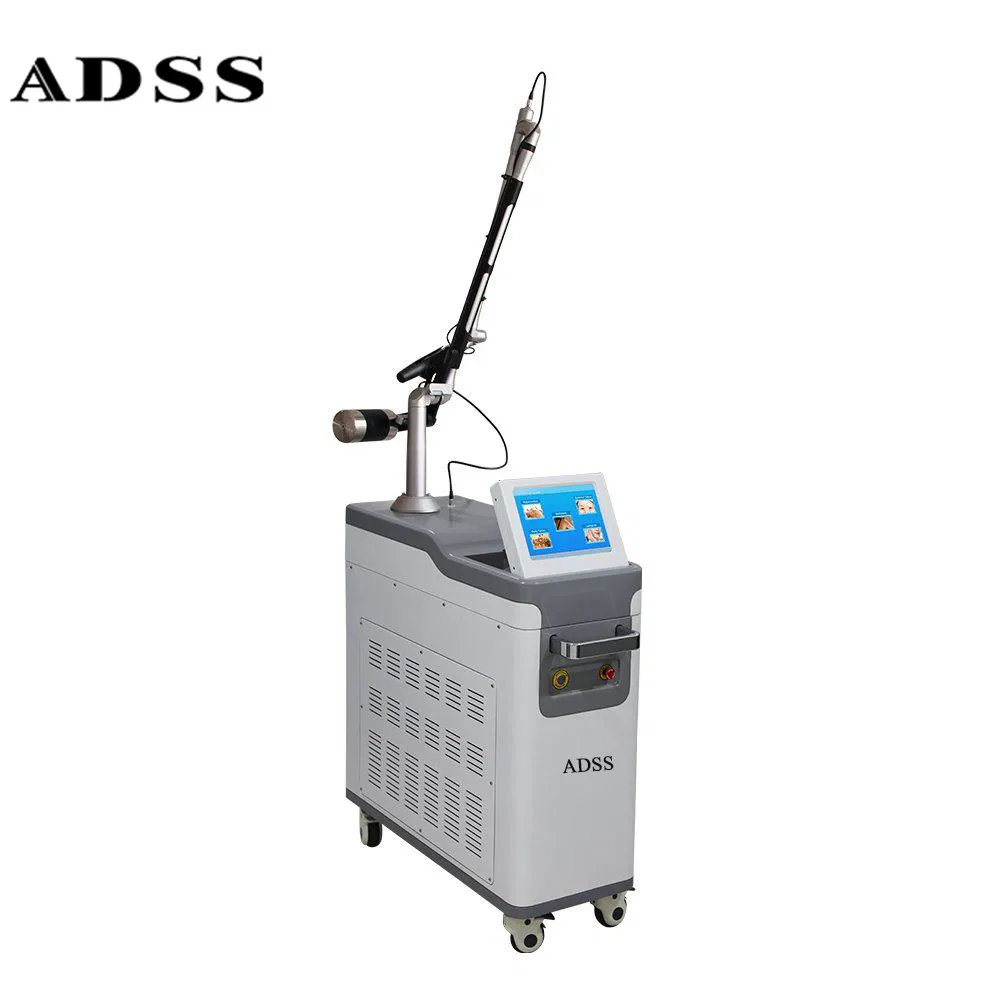

Fg2014 ND YAG Laser Tattoo Removal Machine

Customization: Available
Type: Pigment Treatment Instrument
Theory: Laser

Product Description

📋

Basic Specifications

Model NO.
FG2014
Application
Salon, Home
Portable
Non Portable
Laser Type
ND YAG Laser
Feature
Tattoo Removal Machine
OEM&ODM
Yes
Package
Aluminum Alloy Case
HS Code
85437099

Advanced Laser Technology

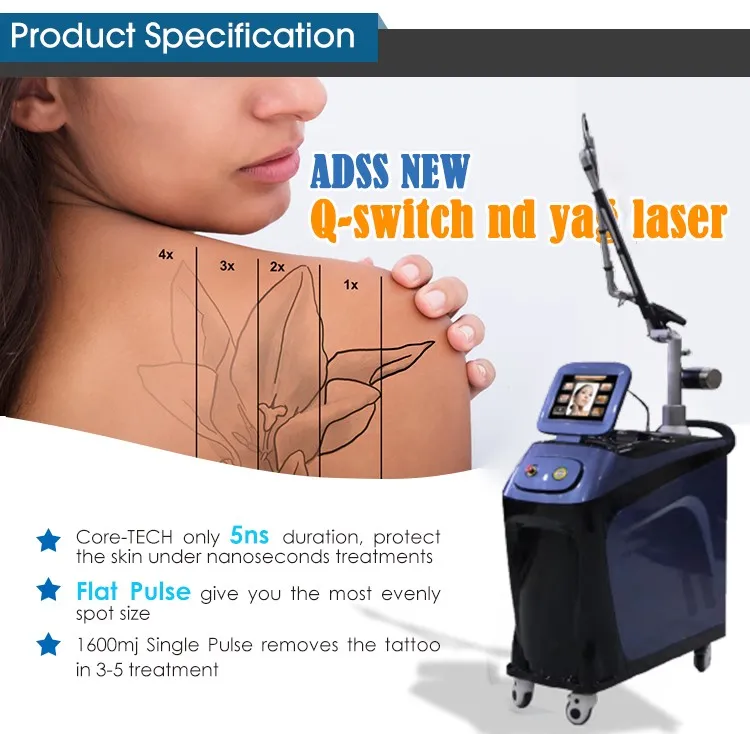

FG2014 ND YAG Laser
Quasi-Long Mode

Quasi-Long Pulse (pulse width 300us @ 1064nm) is a combination of toning and lifting which enables pigmented cells to absorb the laser selectively. It stimulates collagen by the destruction of pigmented cells, and it is useful to general skin for regenerating after peeling, improving loose skin, and minimizing large pores.

DUAL-Q Mode

DUAL-Q mode delivers 2 pulses of constant energy of laser power in a very short period of time. Compared to previous laser toning procedures, its energy is much higher. High energy is divided into two to increase the effect while reducing side effects like hypopigmentation or melasma recurrence. Available at both 1064nm and 532nm wavelengths.

Auto-Calibration System

Reliable treatment can be done in spite of long hours of use since its auto-calibration system provides consistent and stable energy output.

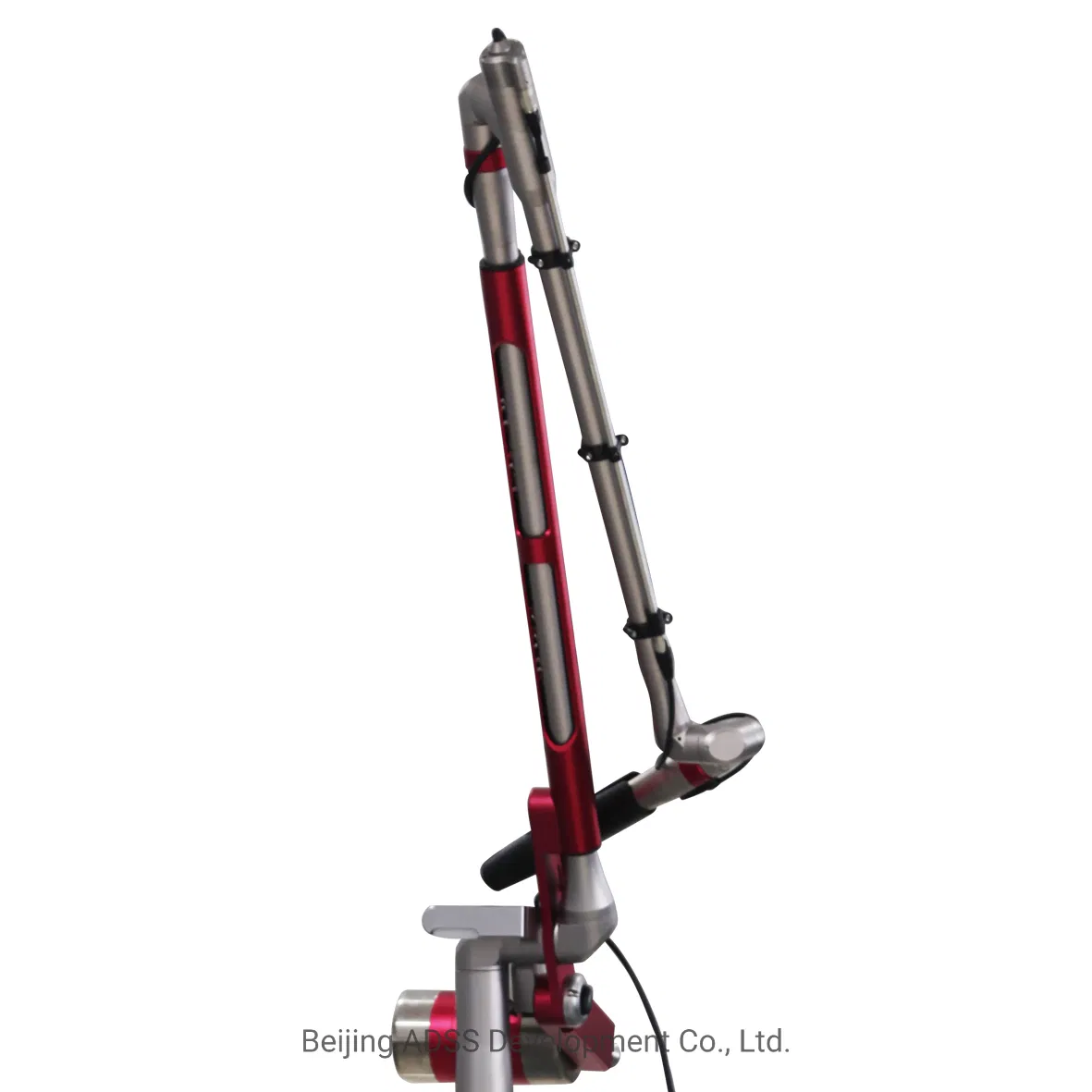

Laser Arm Details
Professional Laser Arm
  1. Imported laser arm with low energy loss (≤ 13%)
  2. Luxury ergonomic design
  3. Free 360° rotation ensuring constant energy output
  4. Advanced shock-resistant design
🎯

Applications & Results

1. Pigmentation Removal: Freckle, speckle, blemish, café au lait spot, Becker's nevus, tattoo removal, melasma, hyperpigmentation.

2. Skin Care: Skin rejuvenation, shrinking pores.

Application 1
Application 2
📊

Technical Parameters

Laser Wavelength 1064nm / 532nm
Aiming Light 650nm (Red Color)
Output Energy Single Pulse: 1064nm (100-1000mJ), 532nm (50-650mJ)
Double Pulse: 1064nm (200-2600mJ), 532nm (100-1300mJ)
Pulse Repetition Rate 1 Hz - 10Hz
Pulse Width 5-8ns (Q-Switched); 300us (Quasi-Long)
Spot Diameter 2mm - 10mm adjustable
Power Supply 1500W / 10A
Articular Optical Arm 7 Joints imported arm
Machine Dimensions 83 * 33 * 92 cm
Net Weight 98 kg
Detail 1
Detail 2
Detail 3
Detail 4

Frequently Asked Questions

What wavelengths does the FG2014 laser machine support?
The machine supports dual wavelengths of 1064nm and 532nm, making it effective for a wide range of pigment colors and skin treatments.
What is the benefit of the DUAL-Q mode?
DUAL-Q mode delivers two high-energy pulses in a very short time, which increases treatment effectiveness while significantly reducing the risk of side effects like hypopigmentation.
Can the spot size be adjusted during treatment?
Yes, the spot diameter is fully adjustable from 2mm to 10mm, allowing for precision targeting of different treatment areas.
How does the Quasi-Long mode improve skin quality?
Quasi-Long mode (300us) stimulates collagen production, which helps in skin regeneration, improving skin laxity, and minimizing large pores.
Is the energy output stable during long procedures?
Absolutely. The machine features an integrated auto-calibration system that ensures consistent and stable energy output even during extended hours of use.
What kind of laser arm does the machine use?
It uses a high-quality 7-jointed imported optical arm with 360° rotation, designed to be shock-resistant and ensure minimal energy loss.
