4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
1 / 5
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine

4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine

Customization: Available
Certification: CE, FDA, ISO, PCI, PDA, UR
Maximum Cutting Thickness: 20 mm
Send Inquiry

Product Description

1

Basic Information

Model NO.ZK-4428
Power Supply380V / 400V / 220V
Maximum Cutting Glass Size4200 × 2800mm
Cutting Glass Thickness Range3~19mm
Linear Accuracy± 0.15mm
Glass Cutting Speed0-180m/Min
Equipment Weight2600kg
Total Power8kw
Production Capacity10000 sets/Year
OriginChina
Glass Cutting Line
2

Technical Specifications

Model Max. Glass Size Thickness Dimensions (L*W*H) Total Power
38293660*2800mm3-19mm12700*3800*240021.75kW
42284220*2800mm3-19mm13900*3800*240022kW
51335100*3300mm3-19mm17100*4450*240030kW
61336100*3300mm3-19mm20140*3900*2400mm34kW
3

Key Production Features

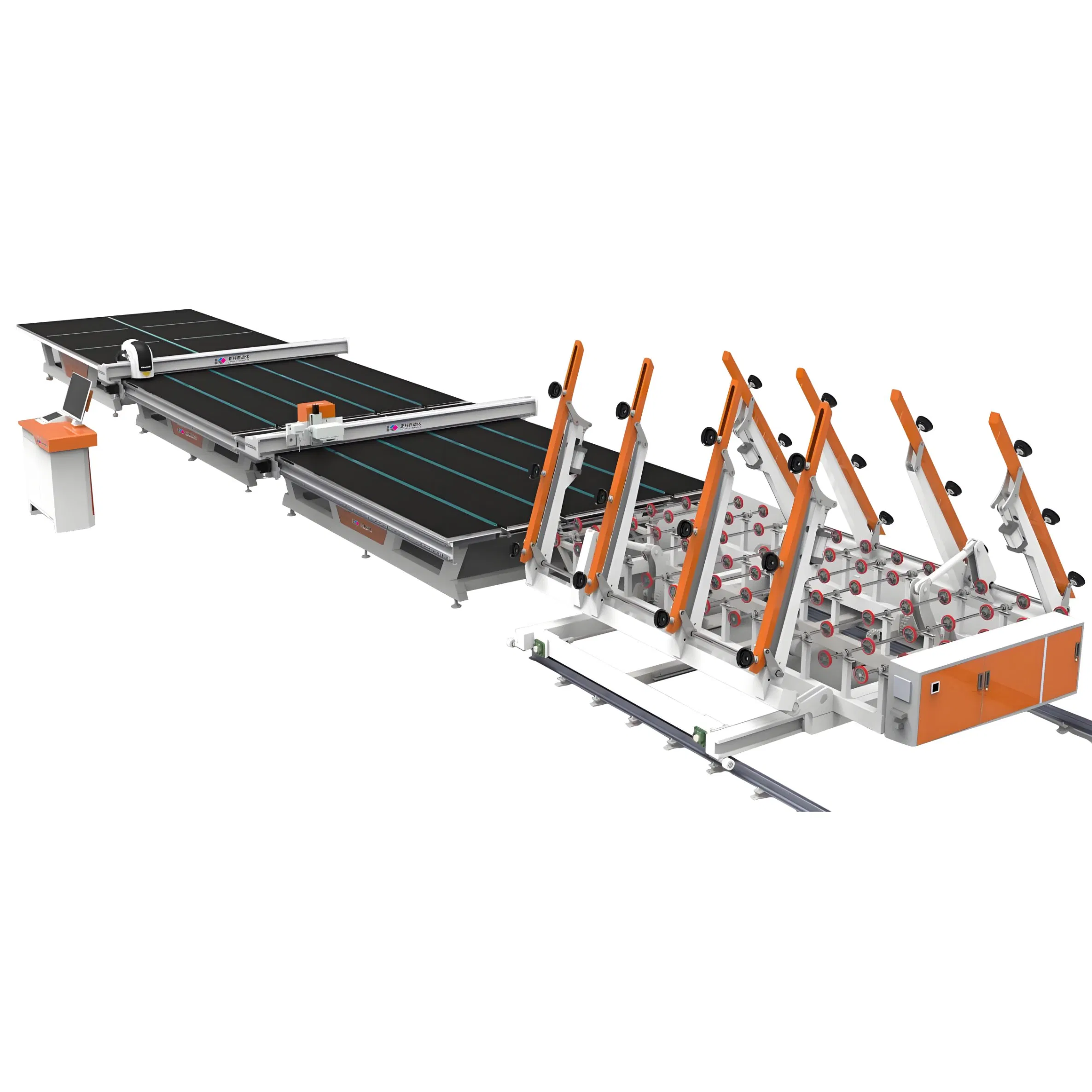

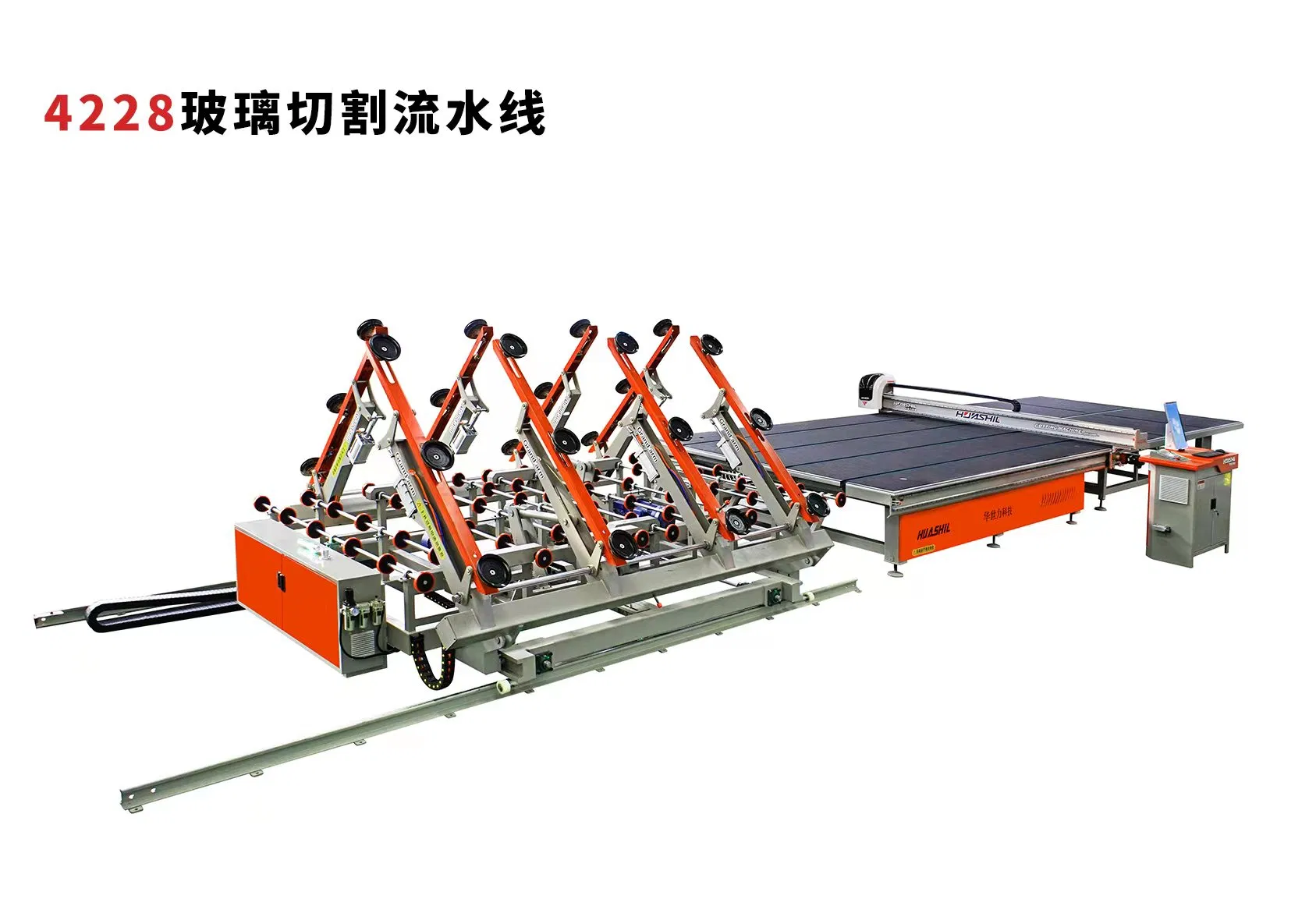

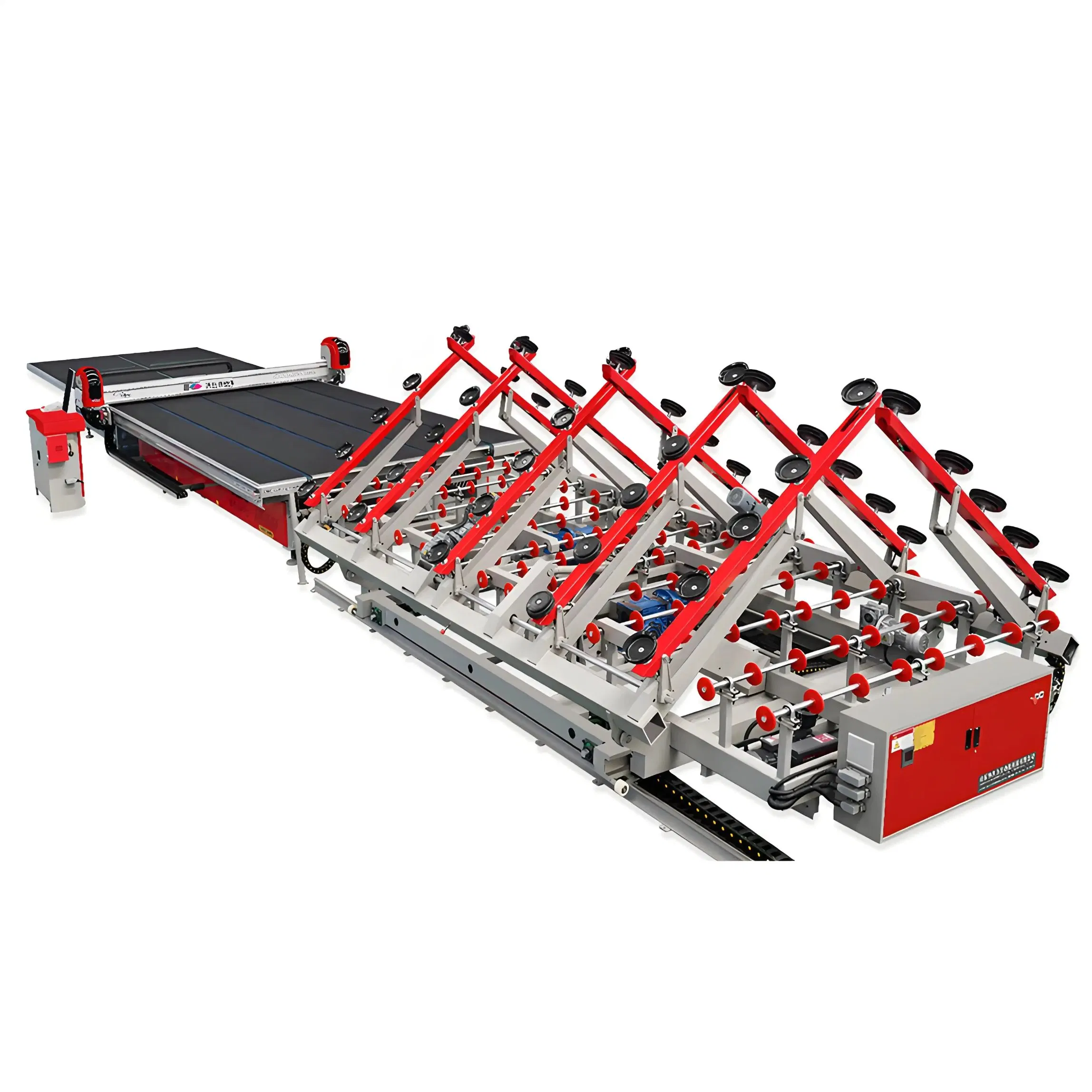

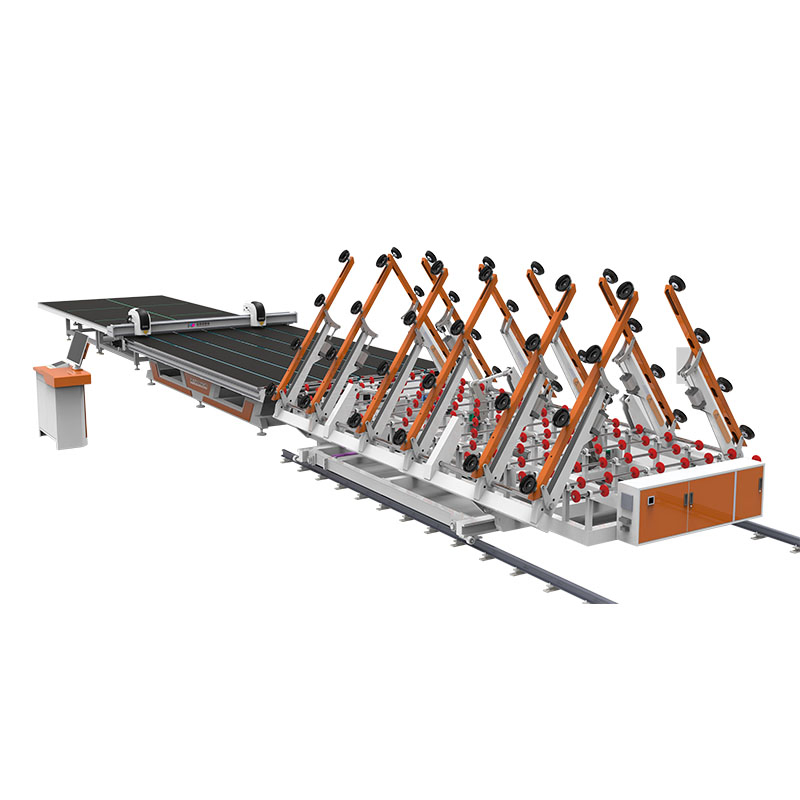

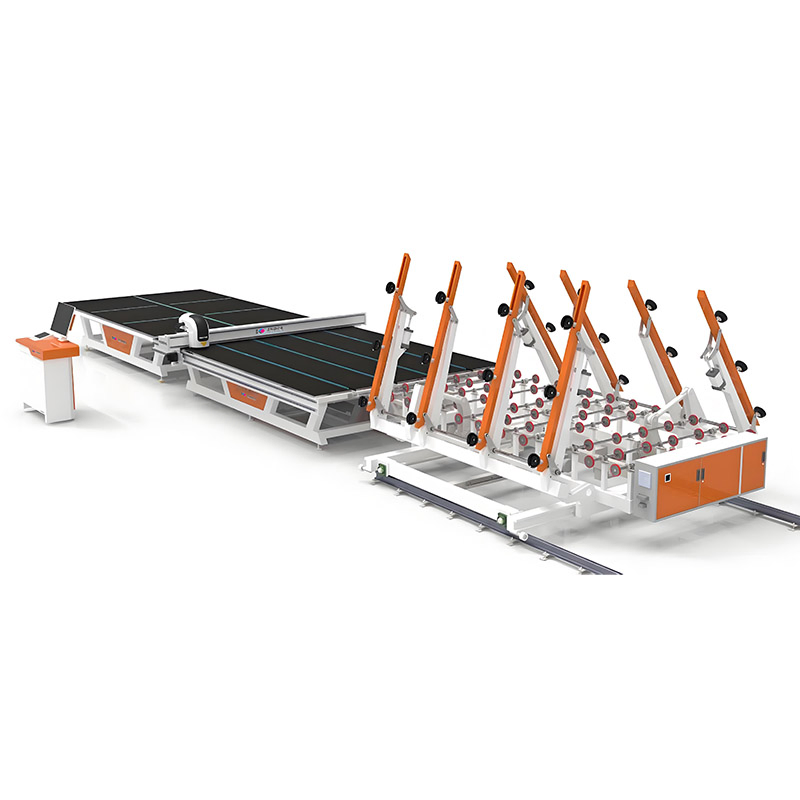

The intelligent glass cutting assembly line consists of three major systems: the loading table, cutting table, and breaking table. Suitable for construction, decoration, home appliances, and more.

Automatic Loading Telescopic arm automatically finds and positions glass once the system detects firm suction.
Intelligent Control One-button control to finish loading, cutting, and labeling tasks simultaneously.
Optimization Software Utilizes Italian Optima software with optimization rates up to 99% for maximum material efficiency.
Fault Detection Real-time automatic fault detection and alarm system for quick troubleshooting.
4

Technical Details

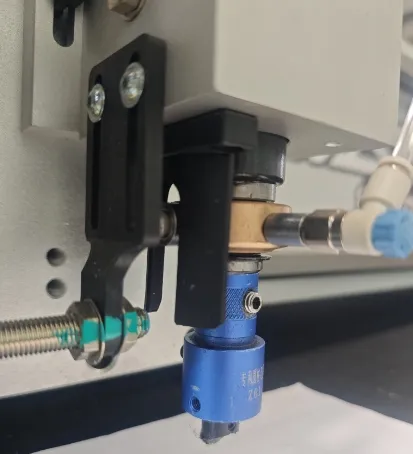

Cutting Head

Cutting Technology: Precision pressure valve control for a perfect fit on glass surfaces.

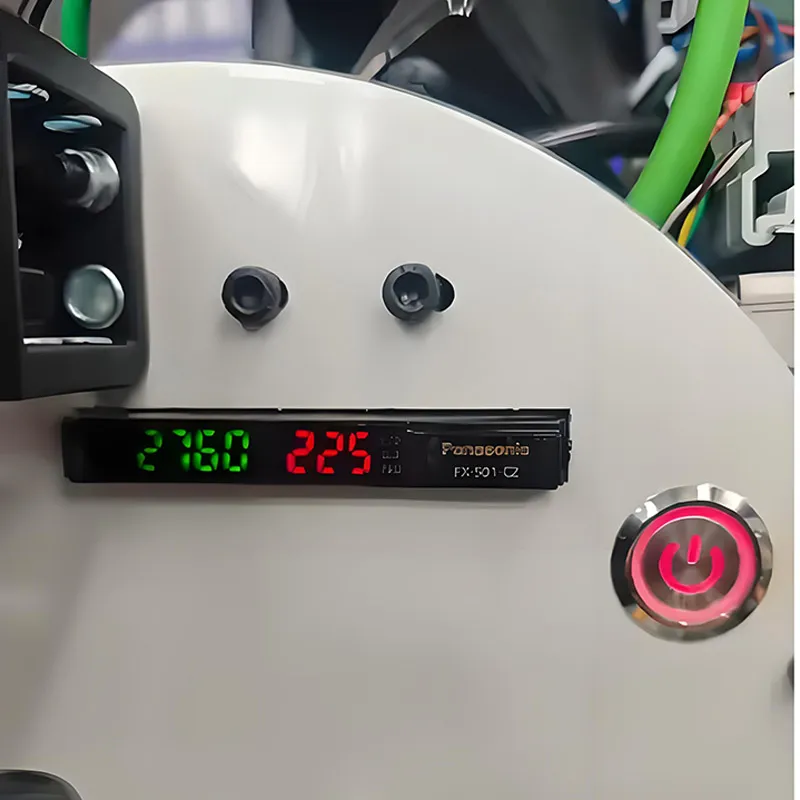

Edge Scanning

Edge Positioning: Accurately detects glass position and deflection angle automatically.

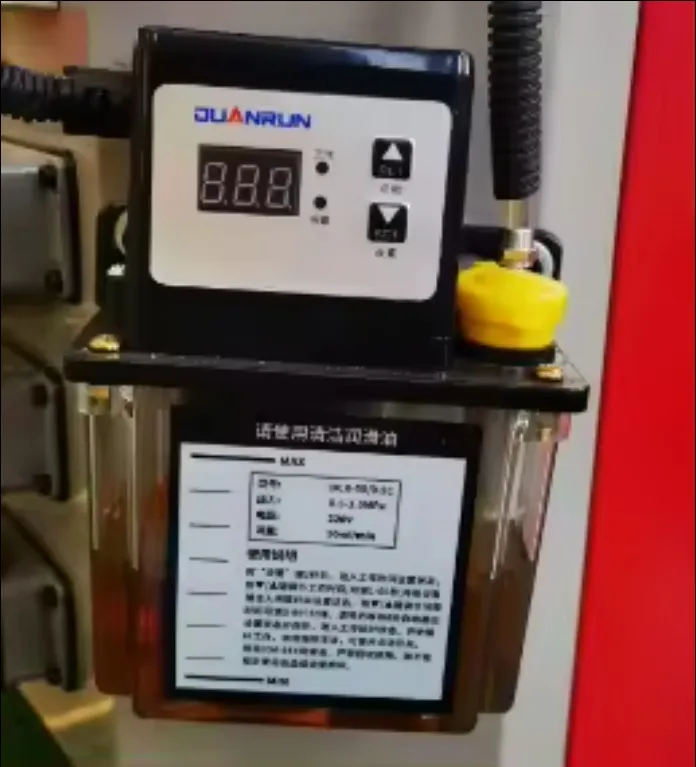

Rail Lubrication

Rail Lubrication: Automatic lubrication system reduces manual intervention and improves stability.

5

Graphics & Packaging

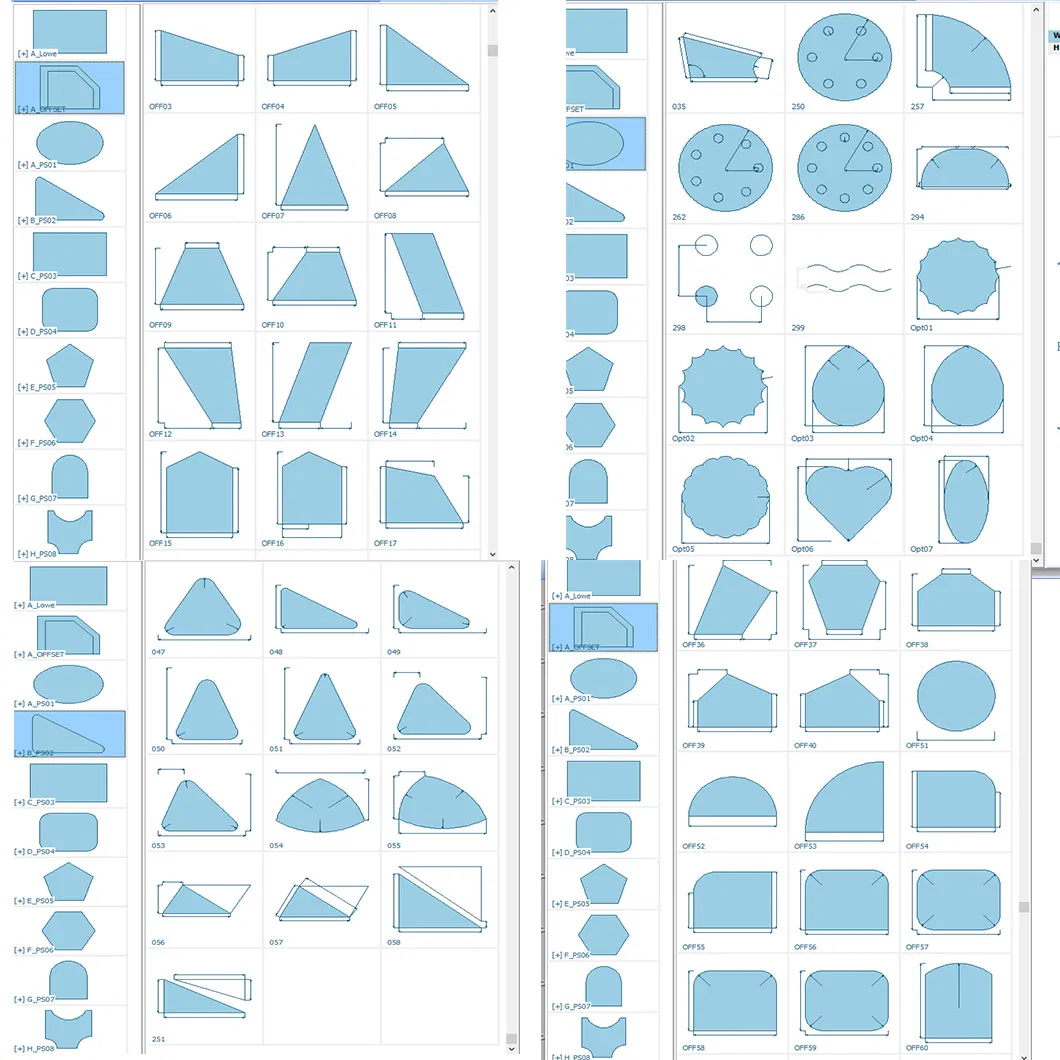

Cutting Graphics

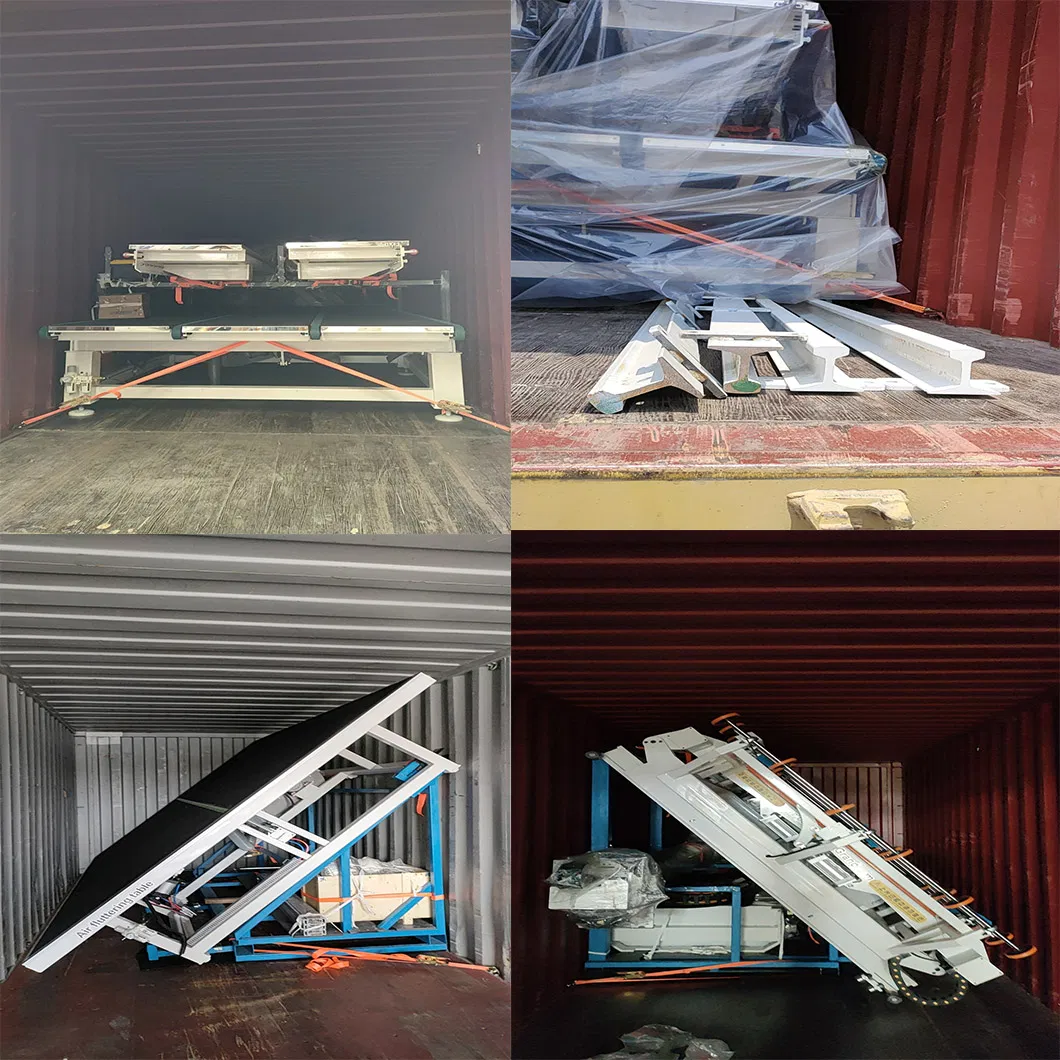

Packing Details
6

Our Core Advantages

  • Professional glass production solutions tailored to needs.
  • Advanced production equipment with strict quality control.
  • Direct manufacturer pricing with no middleman margins.
  • Fast delivery times supported by integrated factory operations.
  • Comprehensive after-sales support including case debugging and technical guides.
Frequently Asked Questions
What is the cutting accuracy of the machine? The linear accuracy of cutting glass is ± 0.15mm, and for abnormal shapes, the accuracy is ± 0.20mm.
What range of glass thickness can be processed? The machine is designed to handle glass thicknesses ranging from 3mm to 19mm.
Does the machine support irregular shape cutting? Yes, the intelligent special-shaped scanning system allows for profiling and cutting of complex graphics based on templates.
What optimization software is used for the cutting process? The system primarily uses Italian Optima optimization software, which is compatible with standard G codes and local Guiyou software.
How does the automatic loading system work? The telescopic arm and the big arm extend together to find the glass. Once the suction cup is secured, the glass is automatically placed on the table.
What are the power requirements for the equipment? The equipment supports 380V, 400V, or 220V power supplies, with total power ranging from 8kW to 34kW depending on the specific model.
