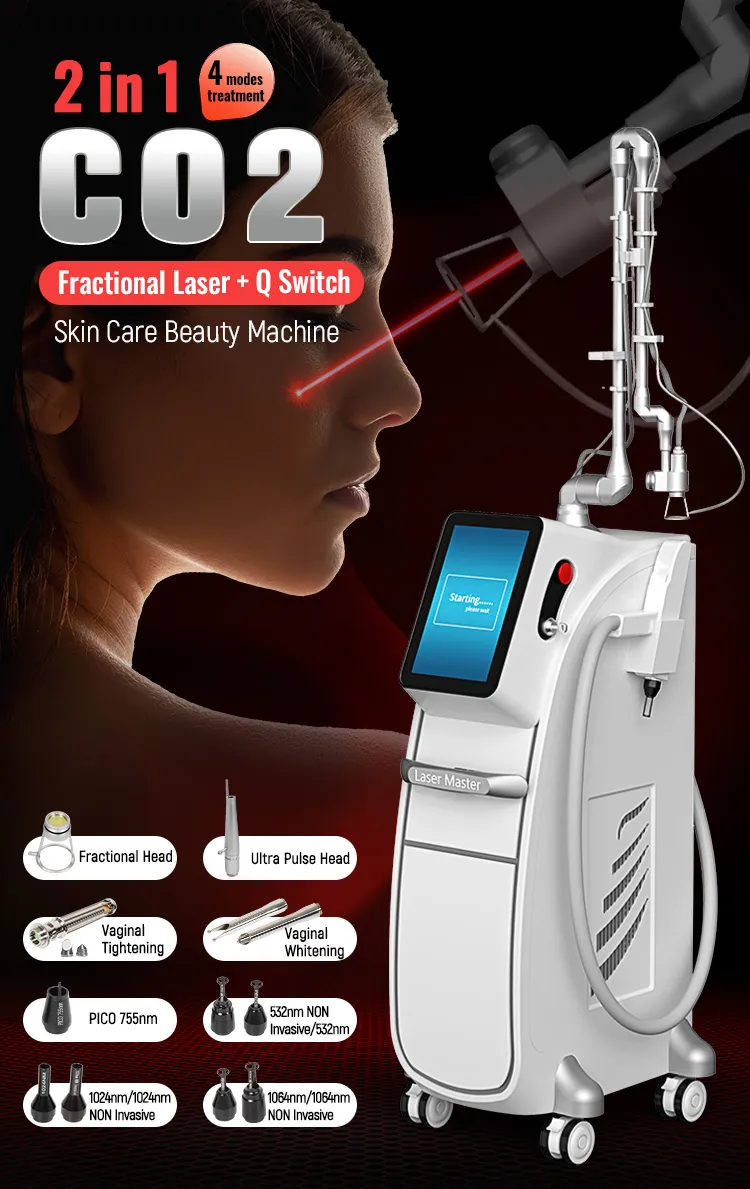

2 In 1 Multifunction Fractional CO2 Laser With ND YAG Laser Skin Care Beauty Machine
A comprehensive professional aesthetic workstation integrating two cutting-edge laser technologies for dynamic skin resurfacing, vaginal health, and target pigment removal procedures.
Product Parameters
Specification Detail
Technical Performance
Power Supply
≤ 1500W

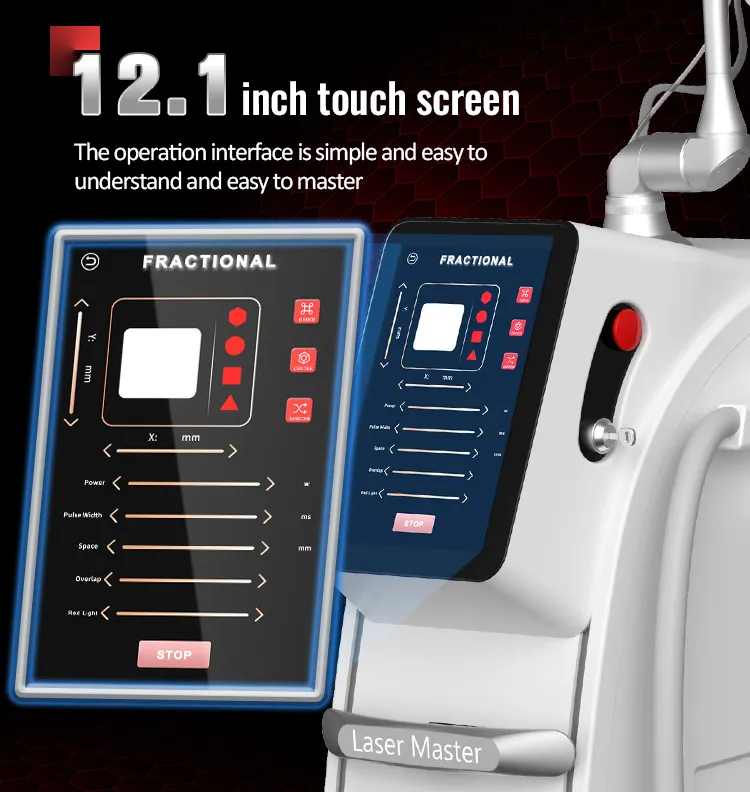

Display Screen

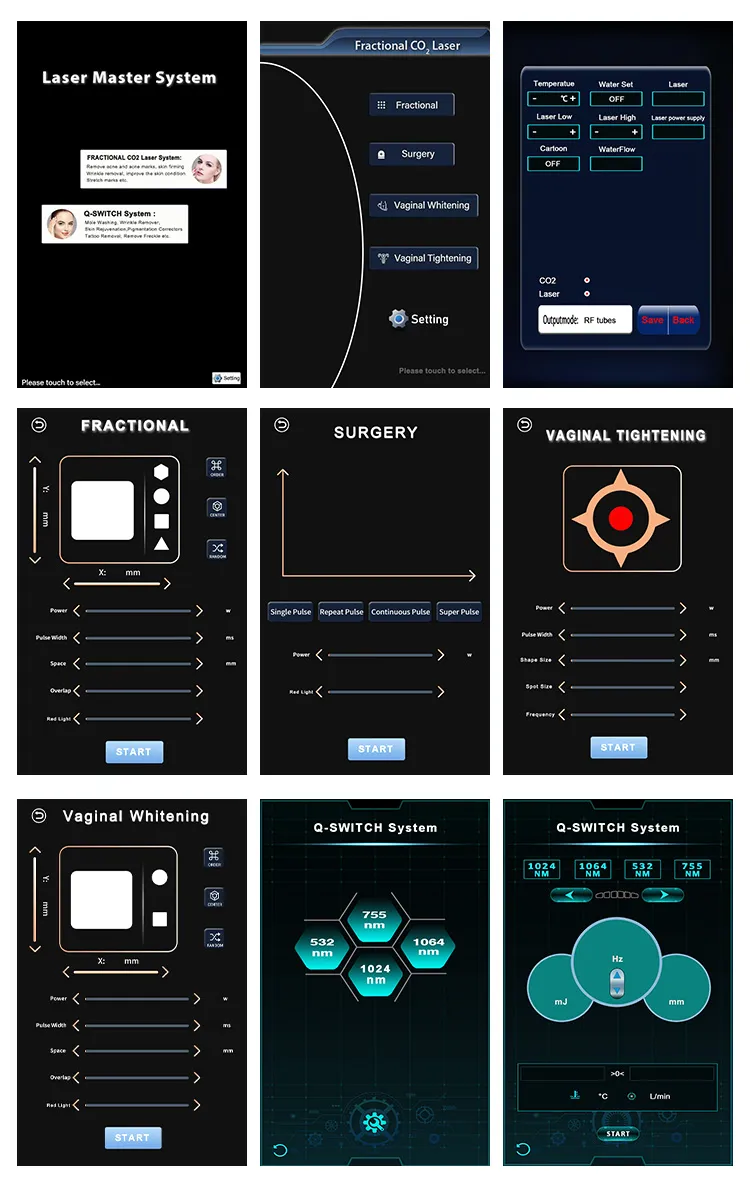

12.1-inch interactive touch screen
Cooling System
Inside-circle coolant circulation system
CO₂ Laser Module
Working Mode
Pulse / Fractional
Output Power
1 - 60W (Adjustable)
Laser Wavelength
10.6μm
Divergence Angle
4mrad
Focused Spot Diameter
≤ 0.4mm
Tool Bit Focus
F=100mm (Optional)
Pulse Width
0.1ms - 10ms
Aiming Beam
Red diode laser (650nm, 2mW)
Transmission System

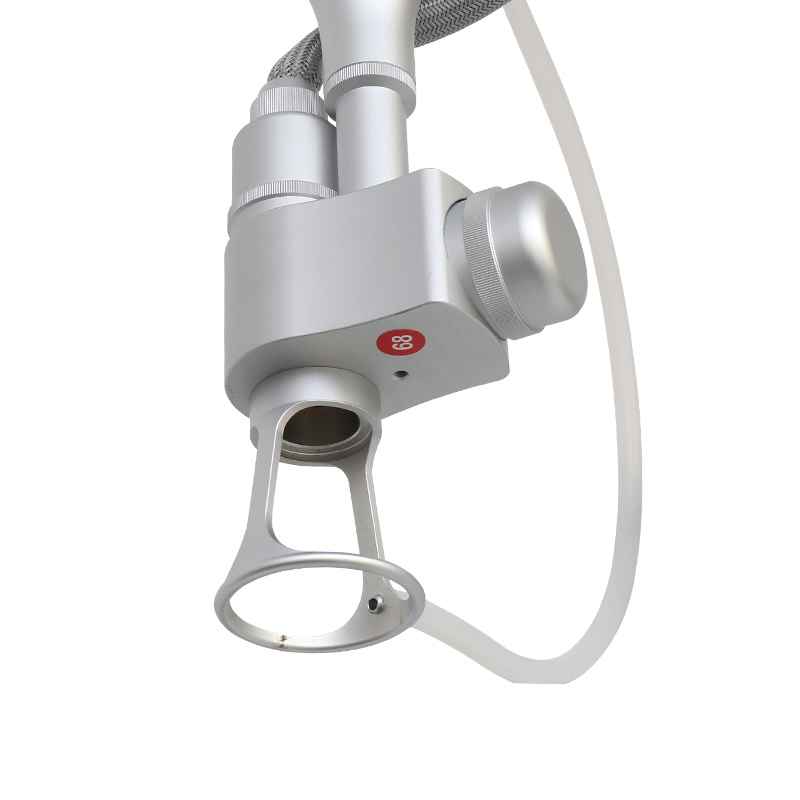

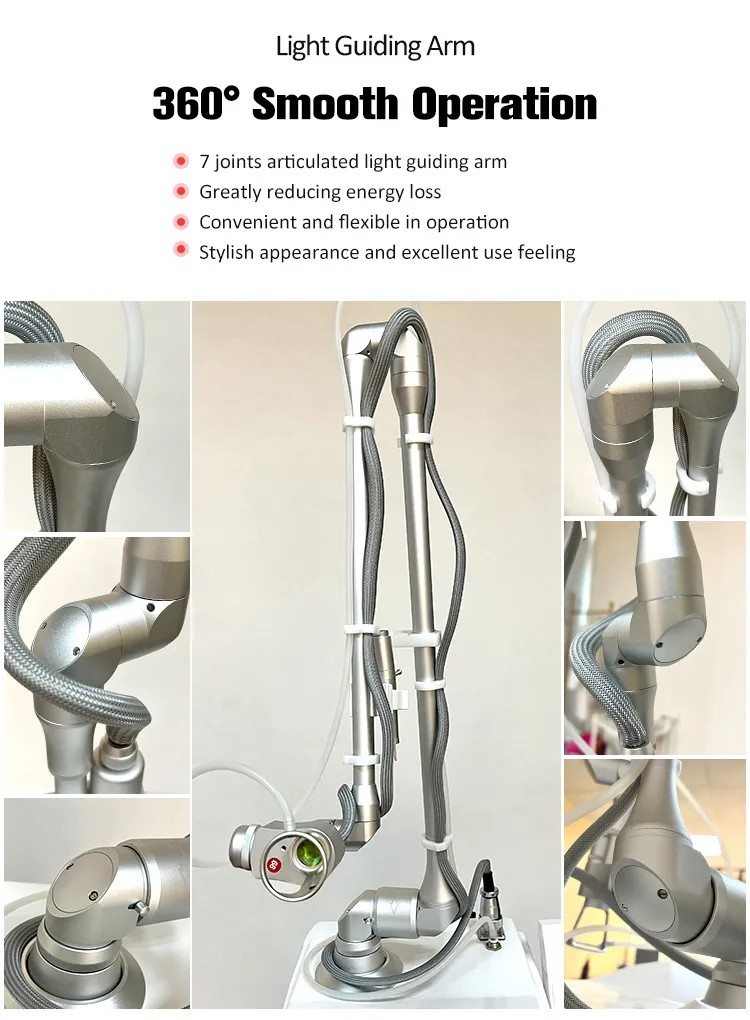

7 Joint articulated balanced arm
Preheating Time
> 5 minutes
Q-Switch Nd:YAG
Supported Wavelengths
1064nm, 1024nm, 755nm, 532nm
Output Power
100 - 2500mJ
Spot Size
3mm
Frequency
1 - 10Hz
Working Temperature Range
5 - 40ºC
Air Pressure / Humidity
86Kpa - 106 Kpa / < 80%
Electromagnetic Compatibility
No electromagnetic interference interrupt
Environmental Setup
Stable environment with no obvious shaking or high airflow

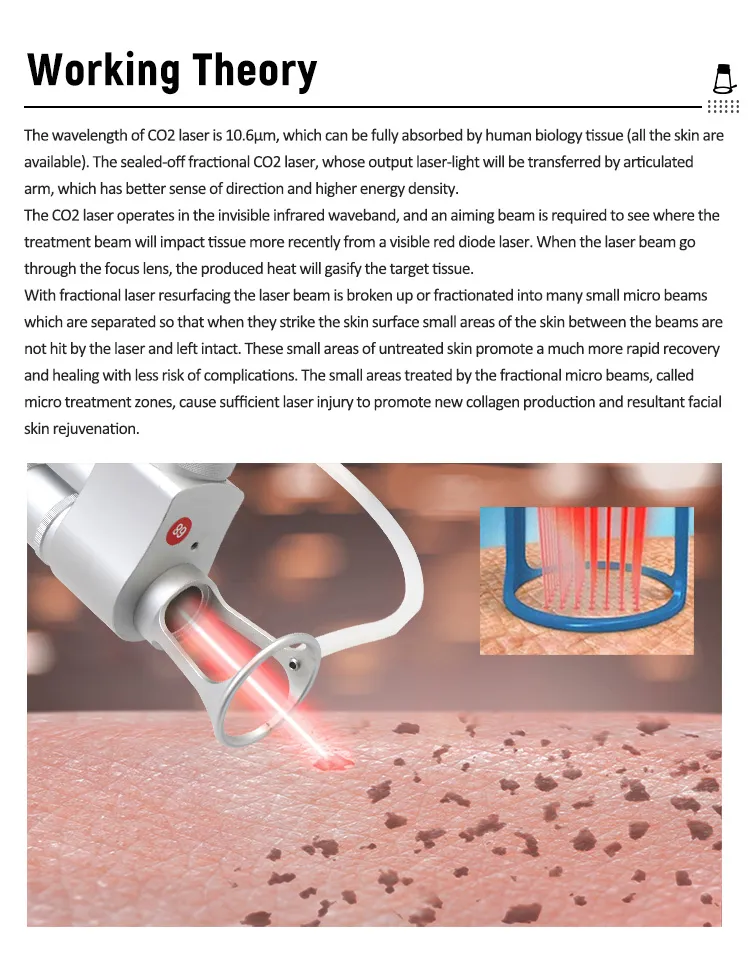

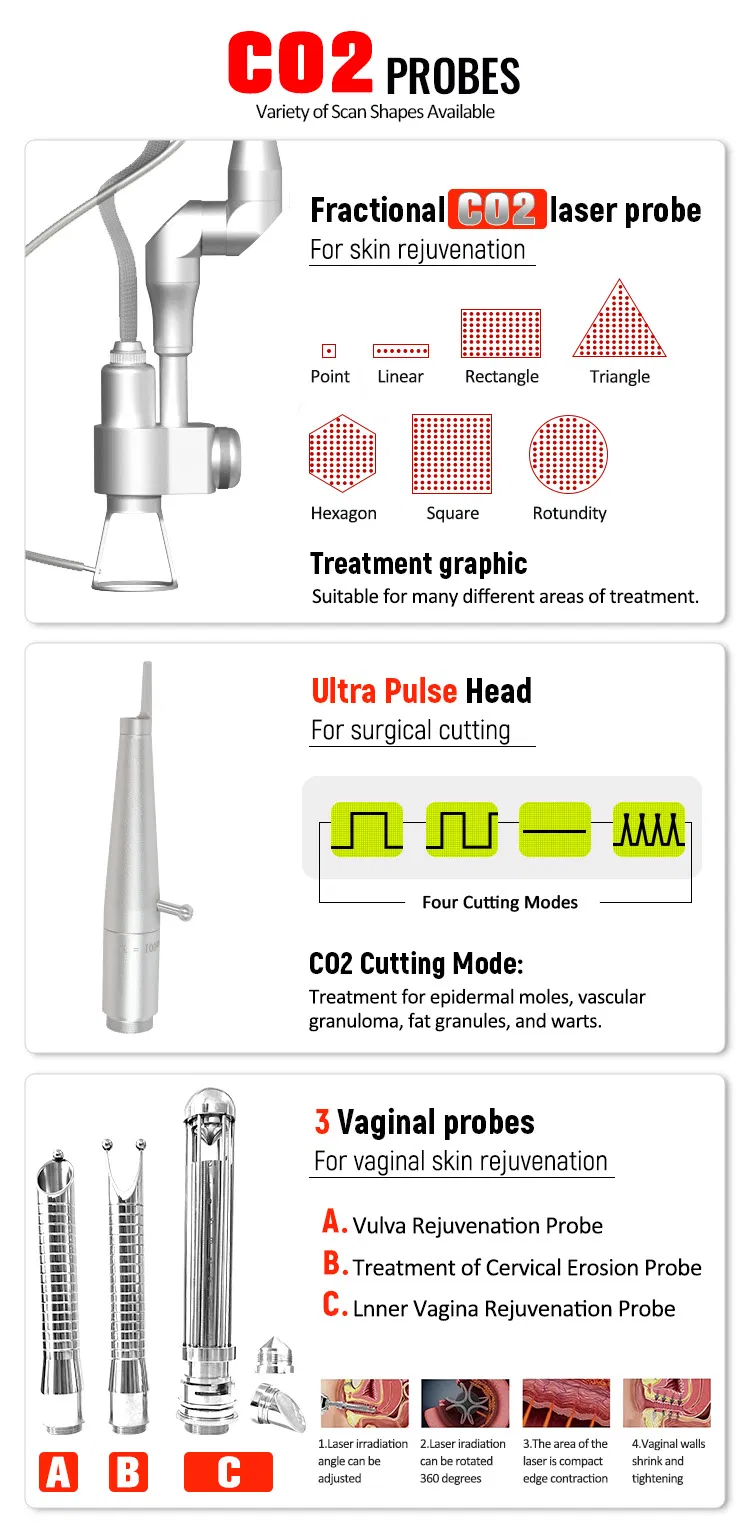

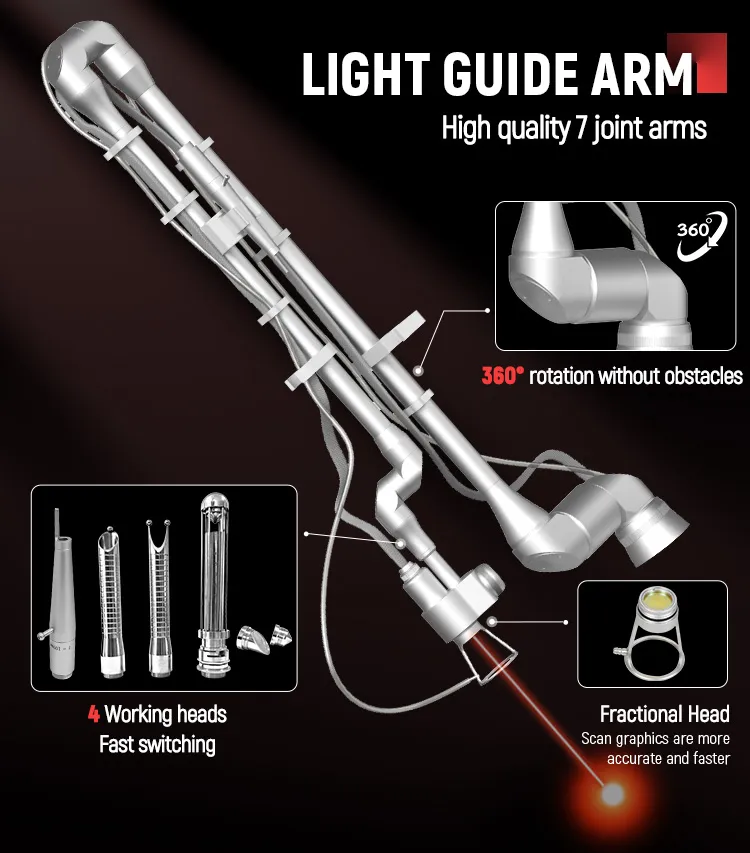

The wavelength of the CO₂ laser is 10.6μm, which is highly absorbed by human biological tissue, making it suitable for all skin types. Utilizing a high-stability sealed-off fractional CO₂ laser, the output laser light is delivered via a premium 7-joint articulated balanced arm. This ensures highly precise directionality and high energy density delivery.
Because the CO₂ laser operates in the invisible infrared band, a red diode targeting laser (650nm, 2mW) provides a highly visible aiming beam to show precisely where the treatment laser will impact. Once focused through the primary lens, the thermal energy targets and gasifies the localized tissue.

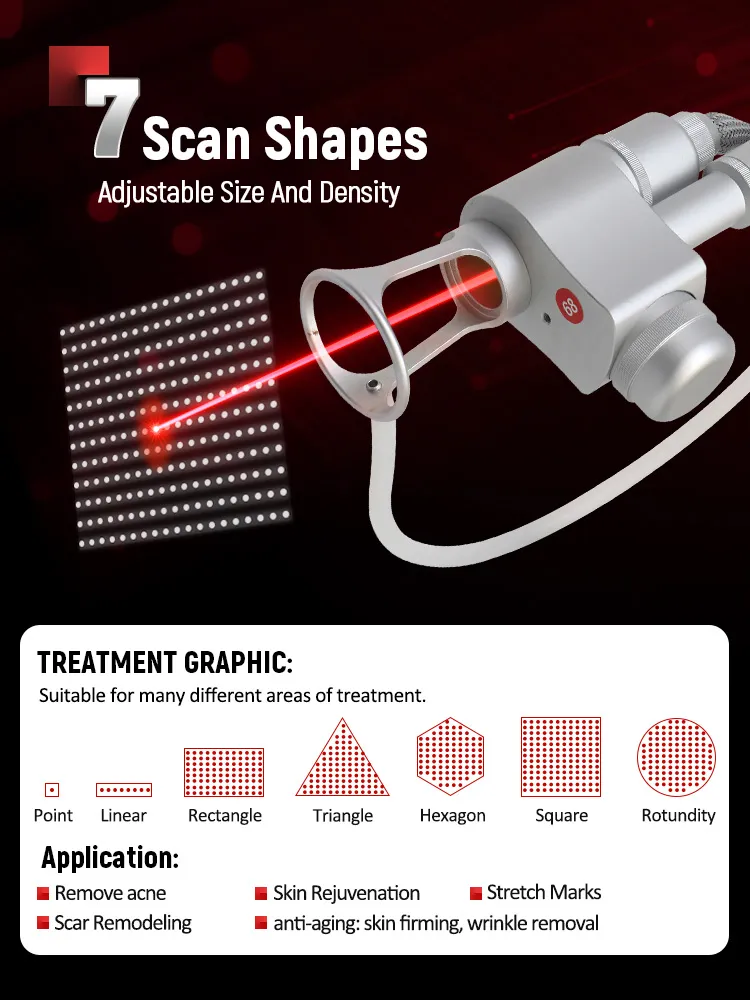

In fractional skin resurfacing, the primary beam is fractionated into many small, separated micro-beams. Small regions of intact skin tissue are left untouched between these micro-treatment zones. This promotes exceptionally rapid cellular repair, significantly reducing healing times and treatment risks while generating substantial new collagen synthesis.

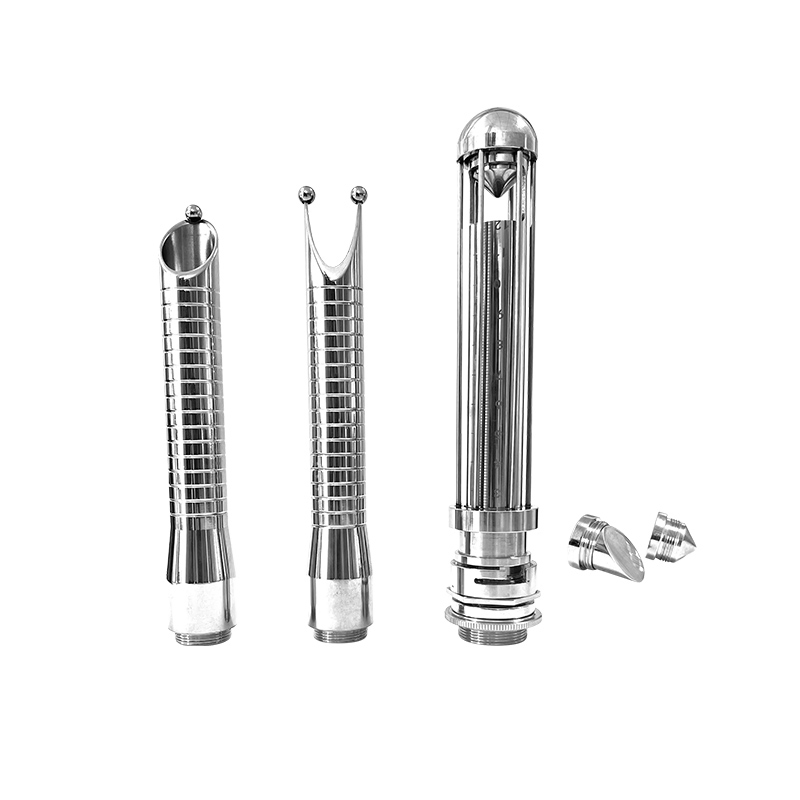

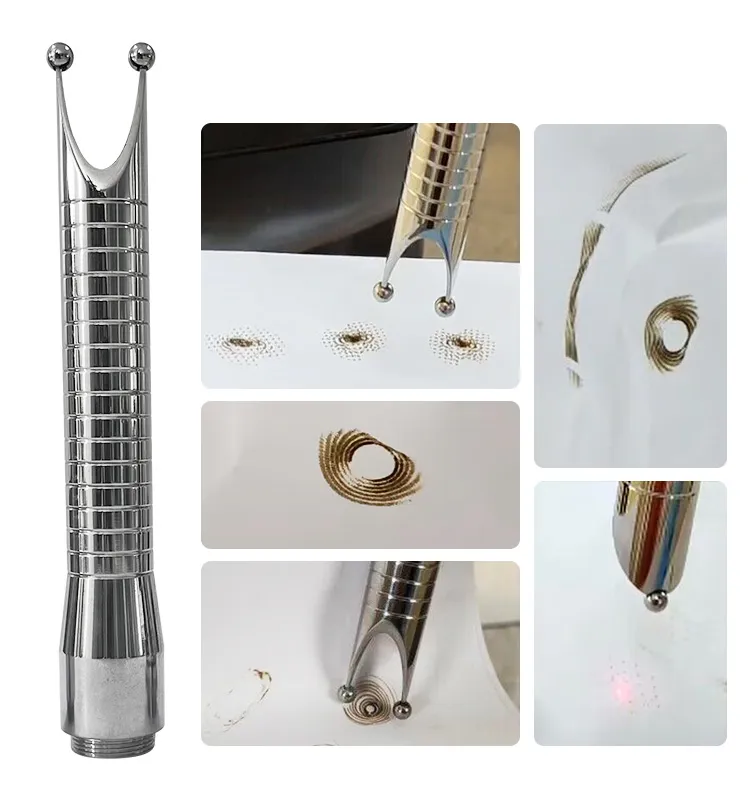

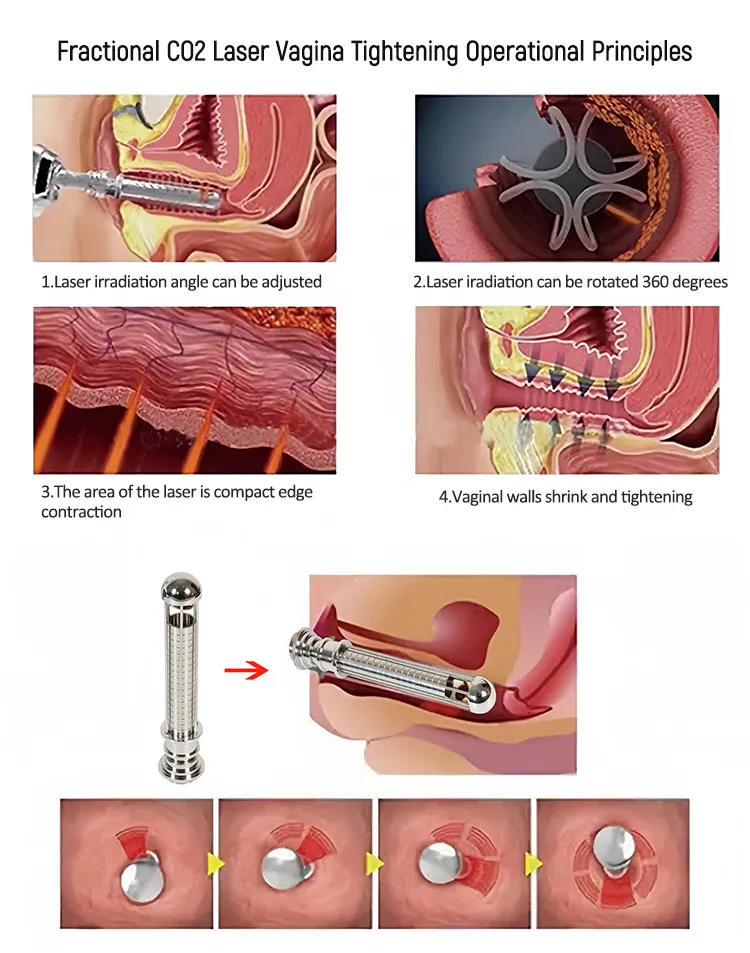

Additionally, the specialized Intimate Vaginal Laser is a non-invasive, surgical-free pelvic floor restructuring technology. Using micro-pulse CO₂ thermal energy, it stimulates cell oxygenation, enhances local nutrient pathways, and encourages fibroblasts to secrete high quantities of collagen and elastin fibers. This process tightens the vaginal walls and restores local tissue tone naturally.

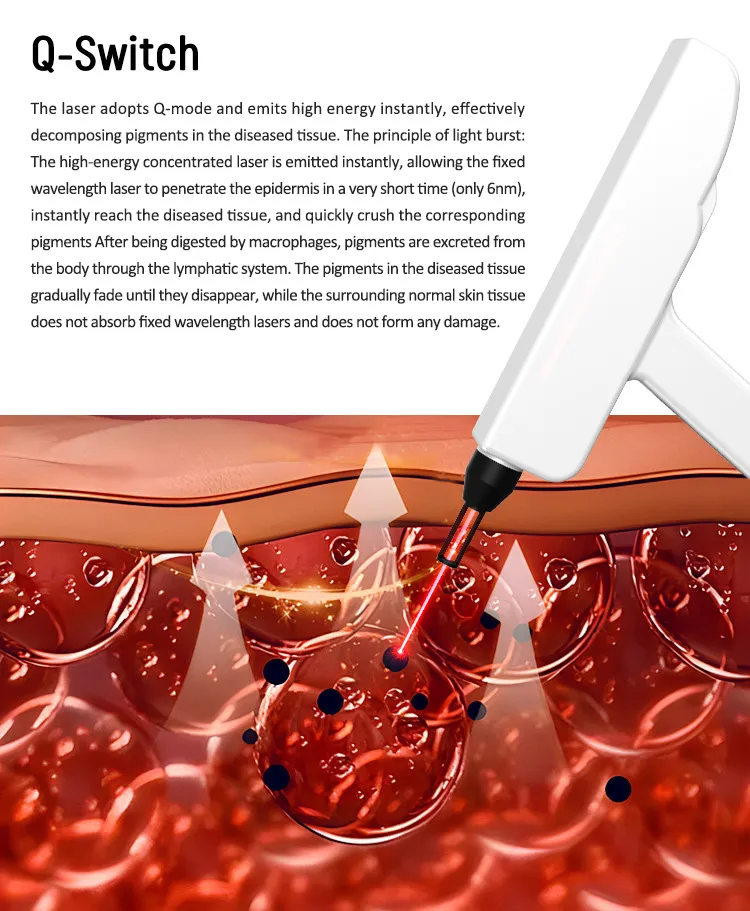

(2) Advanced Q-Switch Nd:YAG Laser Technology
Adopting Q-mode laser output, this system emits high energy in rapid bursts to dismantle deep dermal and epidermal pigments cleanly. Using the light burst principle, high energy gathers and discharges in a very short duration (only 6nm), allowing the specified wavelength to penetrate the outer epidermis and target lesions instantly.
The target pigments expand rapidly from the instantaneous thermal energy, bursting and shattering into tiny, localized particles. The superficial epidermal pigments are shed from the outer skin layer, while deeper dermal fragments are safely engulfed by standard macrophages, metabolized, and naturally processed out of the body via the lymphatic system. Surrounding healthy skin tissue remains completely undamaged as it does not absorb the specified treatment wavelength.

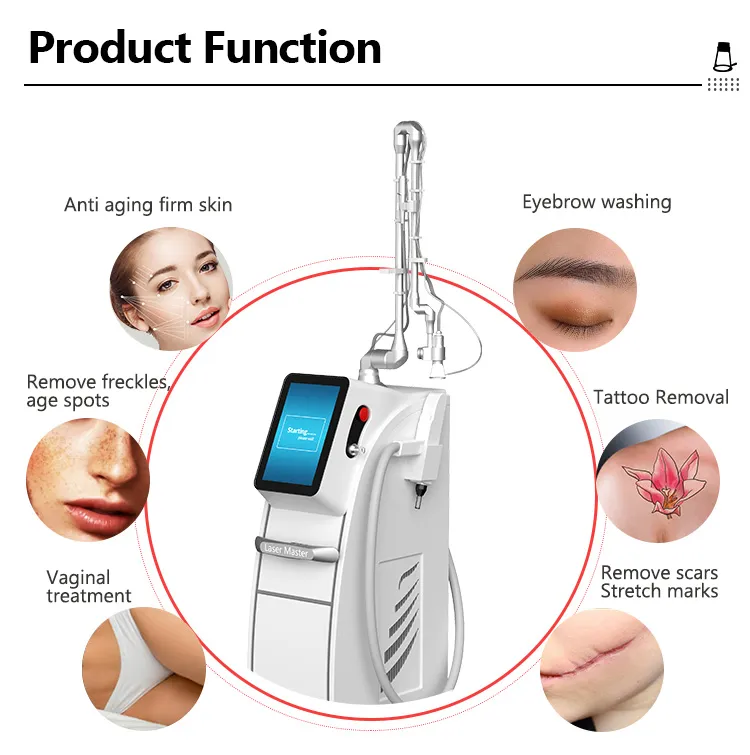

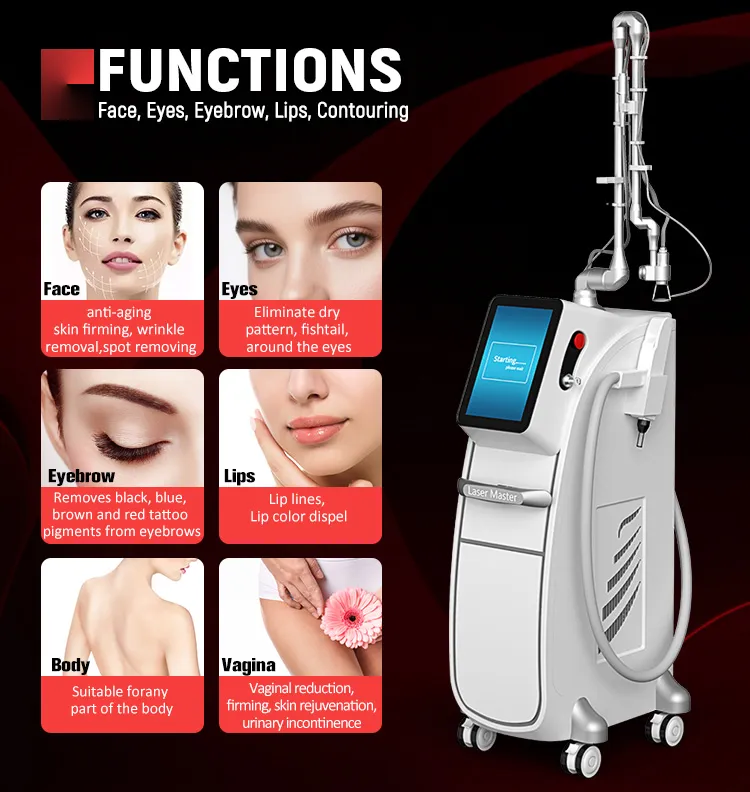

Clinical Applications
CO₂ Laser Applications
Active acne removal and localized acne scar treatment
Elimination of fine lines, wrinkles, and crow's feet around the orbital area
Comprehensive anti-aging: overall skin firming and condition improvement
Dermal pigmented lesion therapy (such as freckles and zygomatic spots)
Vaginal wall tightening, labial restructuring, and internal moisture balance
Q-Switch Nd:YAG Applications
Resolves exogenous hyperpigmentation and deep endogenous pigmented lesions
Targets and shatters black, blue, brown, and red pigment shades
Highly precise treatment for cosmetic eyebrow tattoos and lip lines
Comprehensive tattoo removal across all body areas
Effectively clears localized age spots, sun spots, birthmarks, and color anomalies

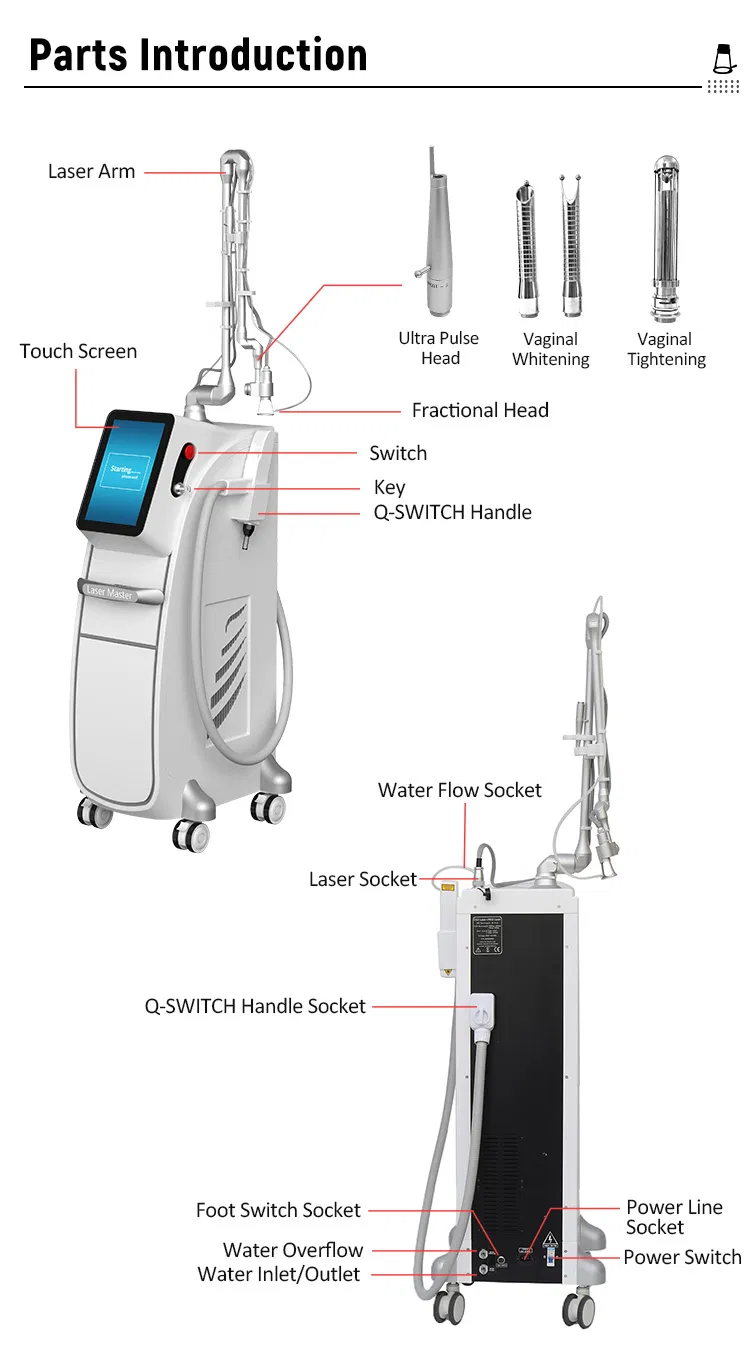

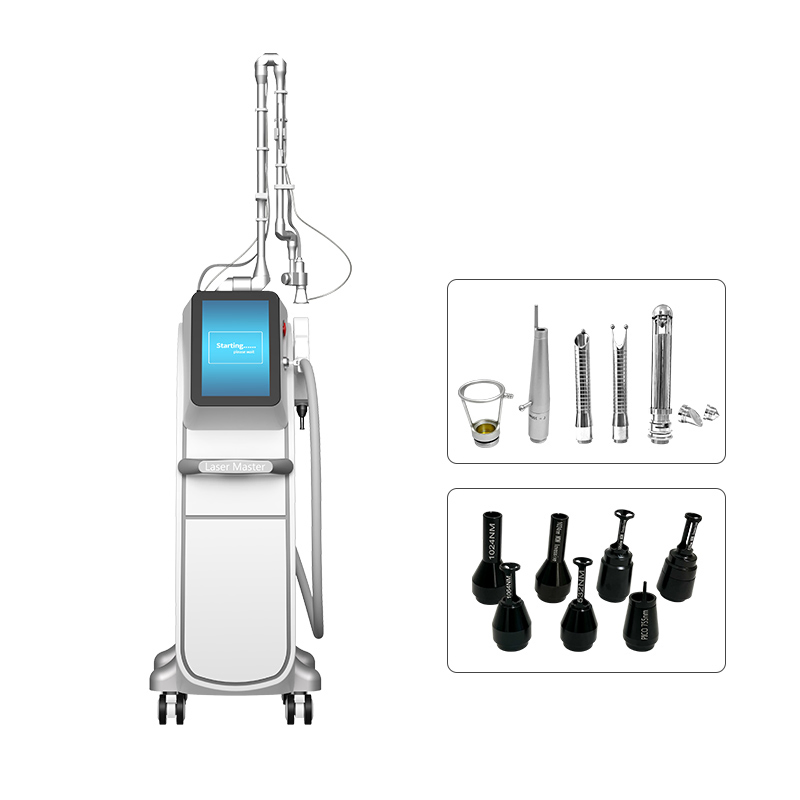

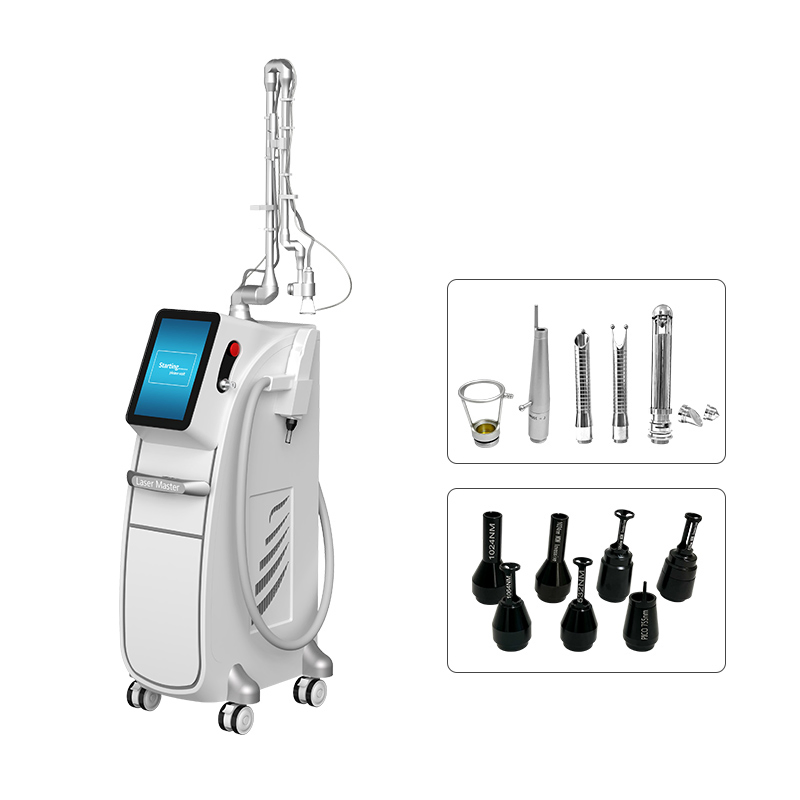

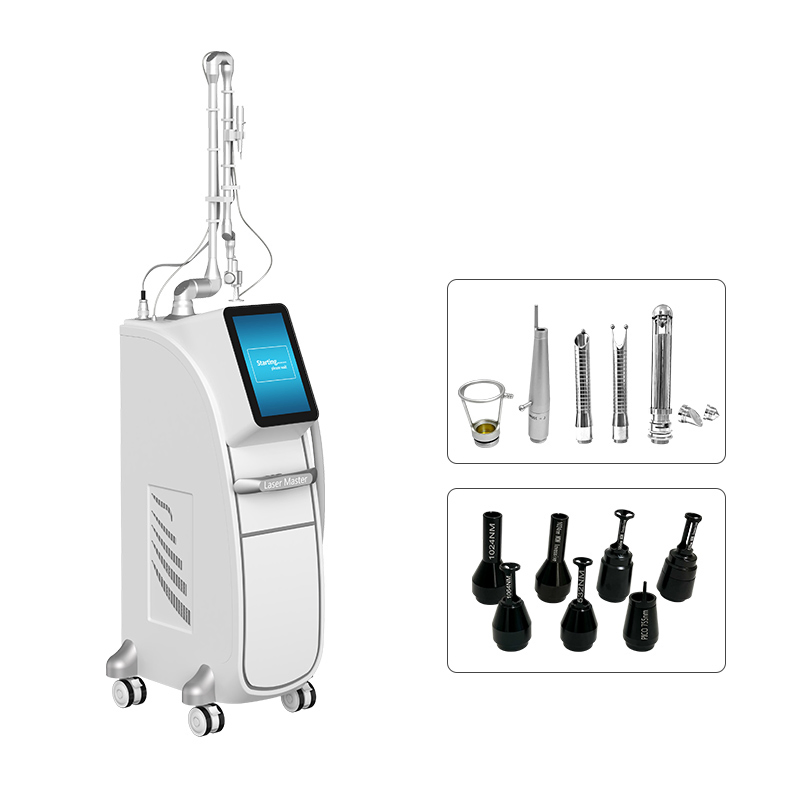

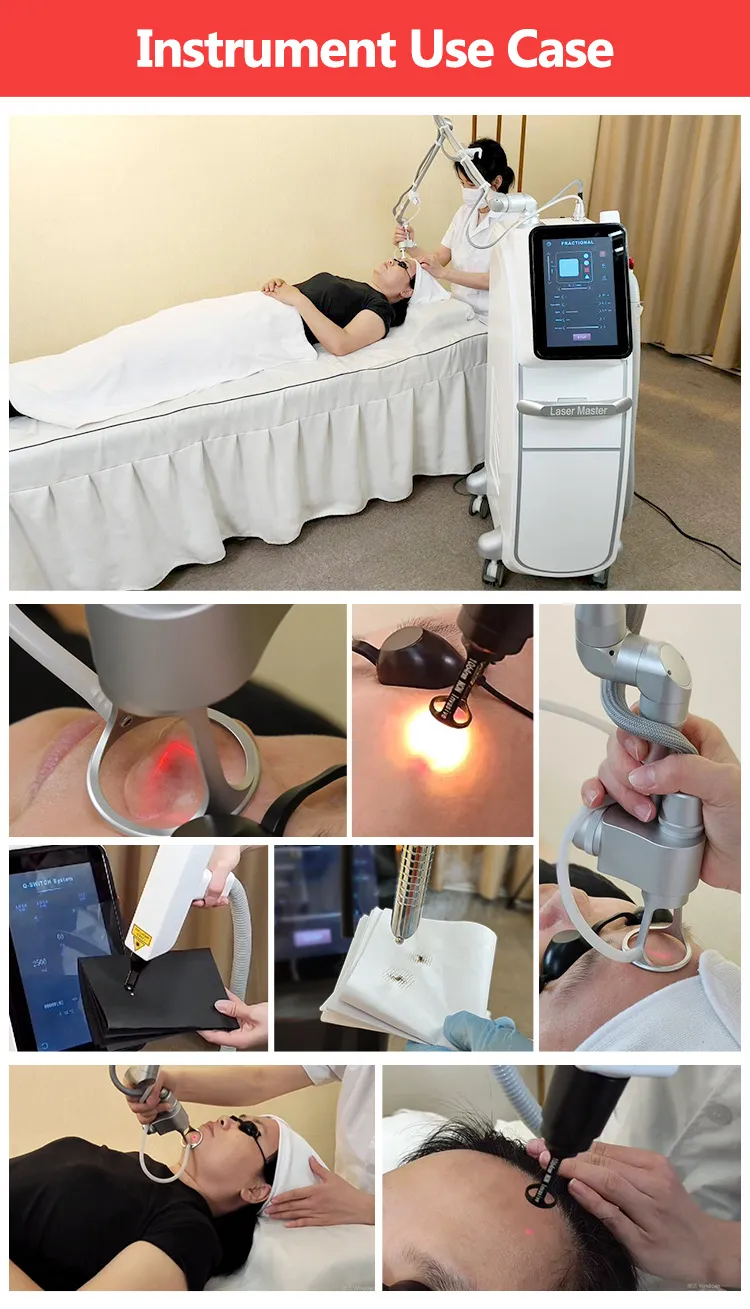

Detailed System Photos
Key Advantages
Before And After Results
Frequently Asked Questions
How does the 2 In 1 Multifunction system benefit my clinic?
This dual-workstation integrates both a Fractional CO2 Laser (10.6μm) and a multi-wavelength Q-Switch ND YAG Laser (1064nm, 532nm, 755nm, 1024nm). It lets you address a vast array of skin indications—from skin resurfacing, vaginal tightening, and deep scar removal to comprehensive multi-color tattoo and pigmented lesion treatments—using a single unit.
What makes fractional CO2 laser healing faster than traditional lasers?
Fractional CO2 technology breaks up the laser beam into microscopic treatment columns, leaving bridges of completely untreated skin surrounding each microscopic zone. These healthy areas promote exceptionally rapid re-epithelialization and faster cellular repair, reducing overall downtime and minimizing pigmentation or scarring risks.
How does the Q-Switch Nd:YAG laser treat pigments without causing scarring?
It operates on the "light burst" principle, releasing exceptionally high energy pulses in ultra-short intervals (only 6 nanoseconds). This extreme speed allows targeted pigment clusters to break up thermally before transfering harmful heat to surrounding cells, ensuring local normal tissues remain completely intact.
Is the Intimate Vaginal Laser treatment painful?
No, it is a non-invasive, surgical-free procedure. Using micro-pulse CO2 laser technology, it stimulates biological oxidation and triggers collagen restructuring within the vaginal walls, ensuring a highly comfortable experience with zero surgical incisions.
Which laser wavelengths are used for different tattoo ink colors?

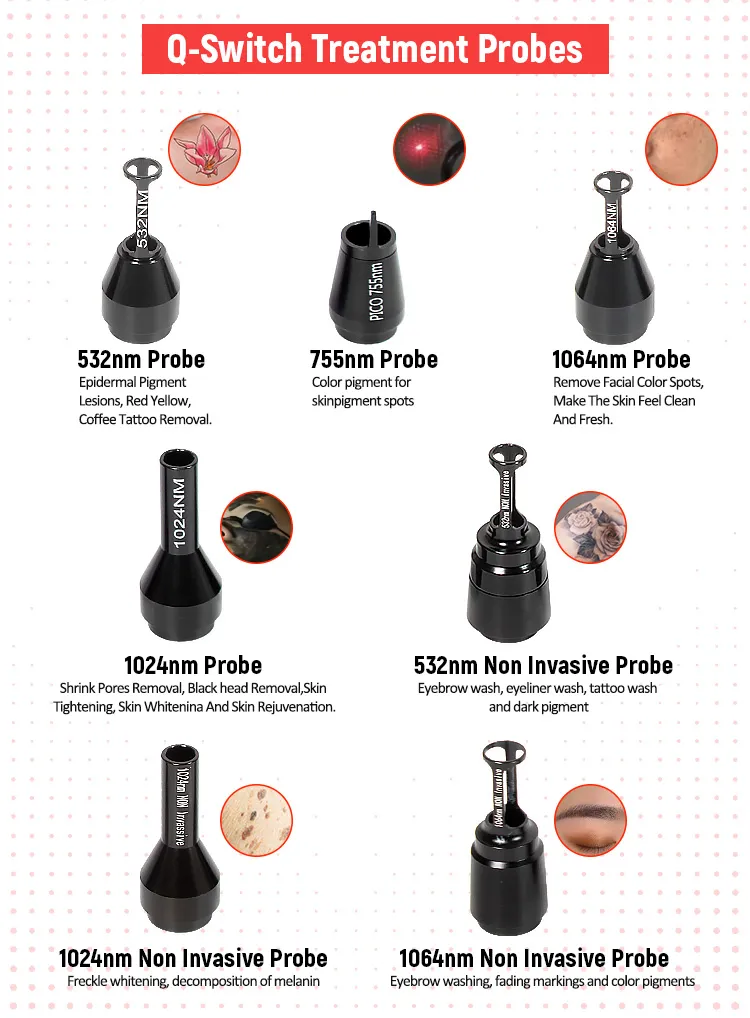

The system features multiple Nd:YAG wavelengths: 1064nm is optimal for deep black and dark blue pigments; 532nm targets bright red and orange ink shades; while 755nm and 1024nm provide options for green, brown, and complex pigments across all skin layers.
