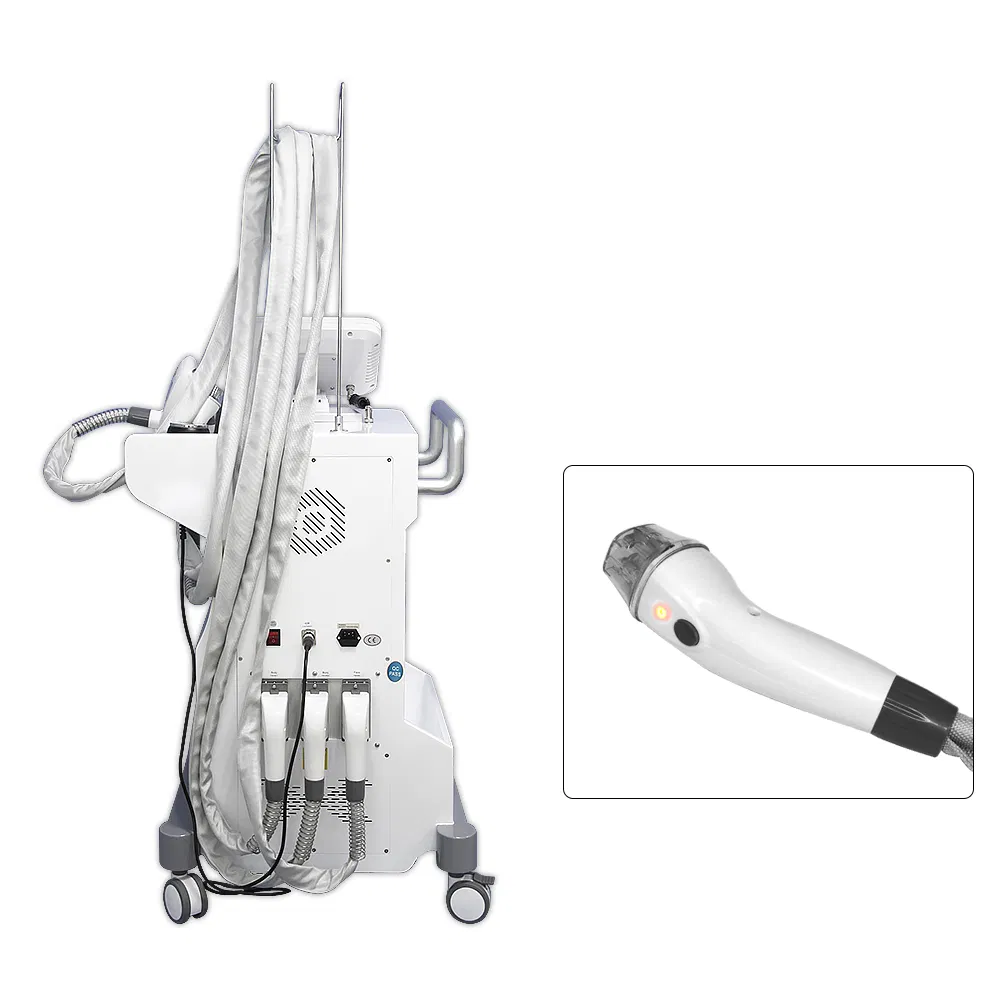

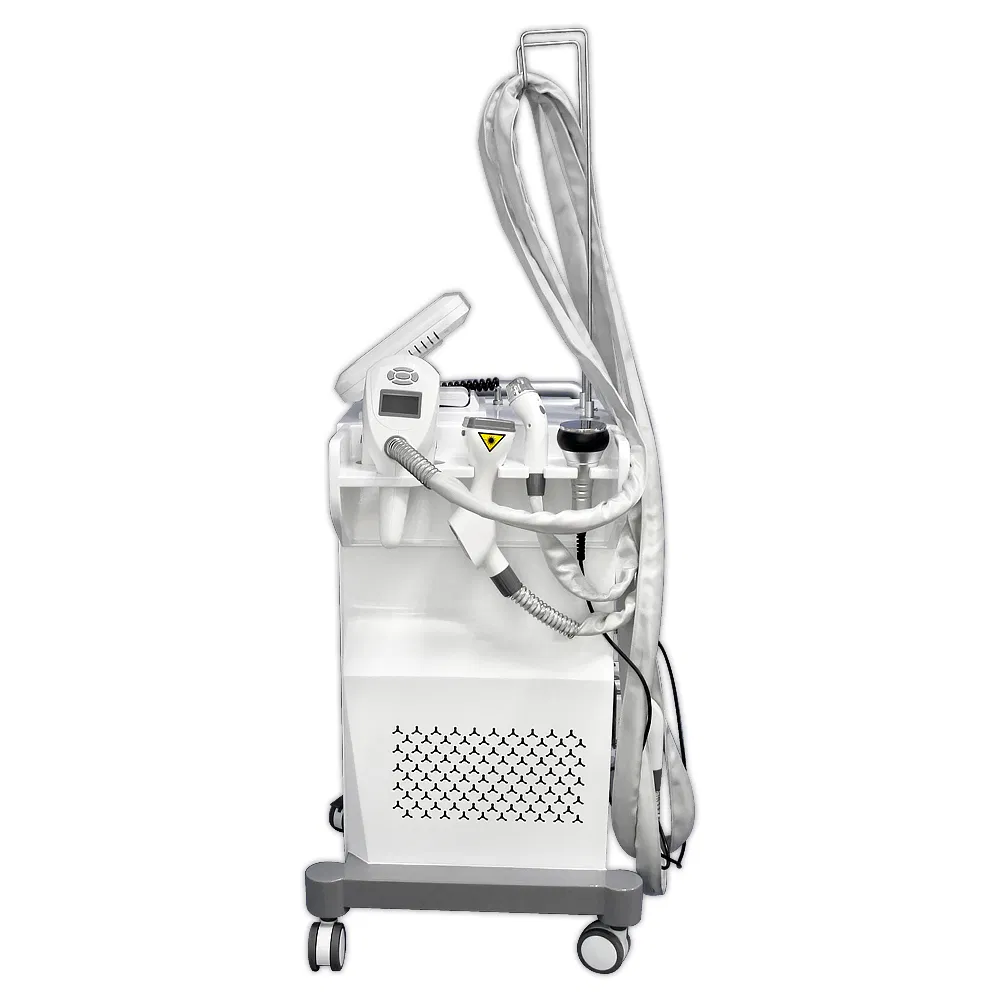

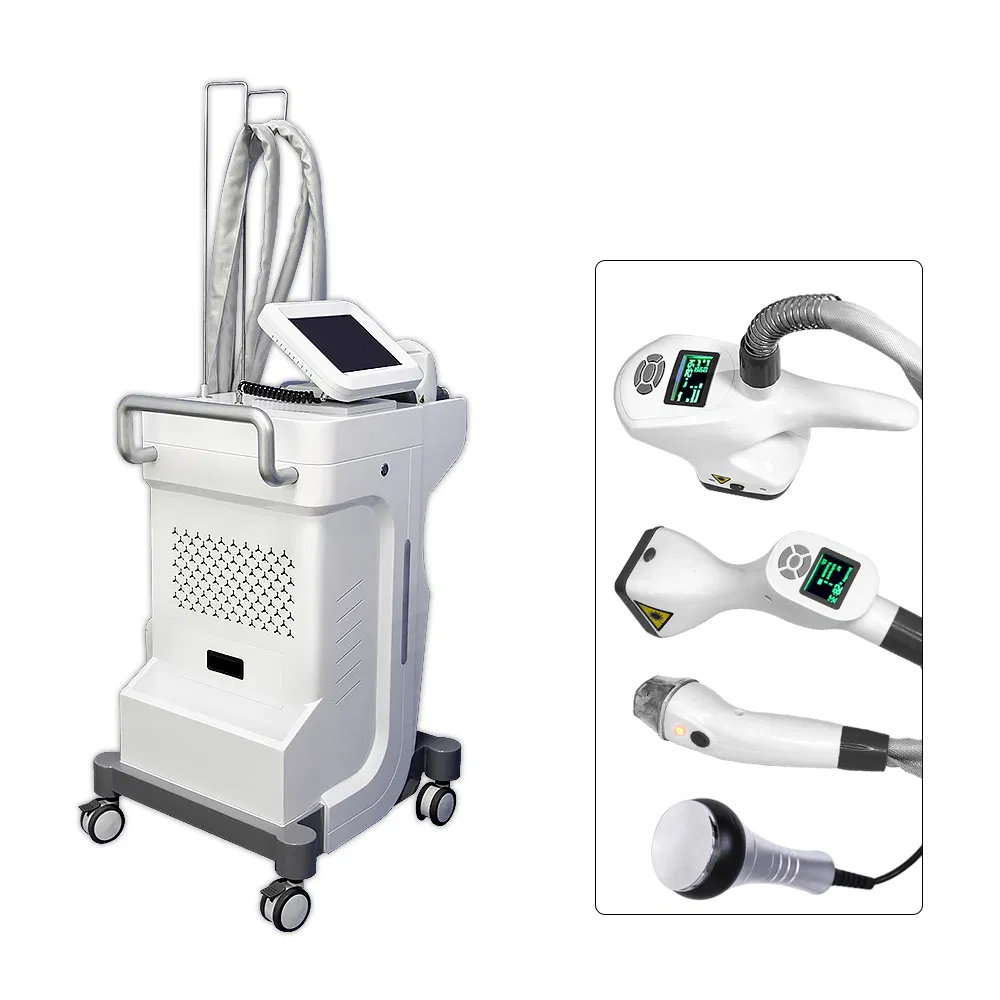

New Lifting Eye Skin Tightening Physiotherapy Whole Body Slimming Vacuum RF Roller Infrared RF EMS Shapevela Slimming Device

Customization:	Available
Type:	Slimming Machine
Theory:	Vacuum

Basic Info

Model NO.

v68

Application

Salon, Home, Clinic

Portable

Non Portable

LCD Screen

10.4" Display Screen

Working Mode

Pulse

Pulse Width

0.5-7.5s

Vacuum Pressure

Absolute Value: 80kpa -10kpa

Rev of Roller

0-36 Rpm

Working Mode for Roller

4 Types

Safety Checking

Real Time on Line

RF Frequency

1MHz

Laser Wavelength

940nm

Laser Power

Max 20W

Rated Input Power

750va

Function

Vacuum Massage, Body Slimming/Shaping

Product Name

Multi Functional Beauty Salon Equipment for Body S

Transport Package

Wooden Case

Specification

109*75*64CM

HS Code

90189090

Production Capacity

1000 Per Month

Product Description

2021 New Lifting Eye Skin Tightening Physiotherapy Whole Body Slimming Vacuum RF Roller Infrared RF EMS Shapevela slimming device

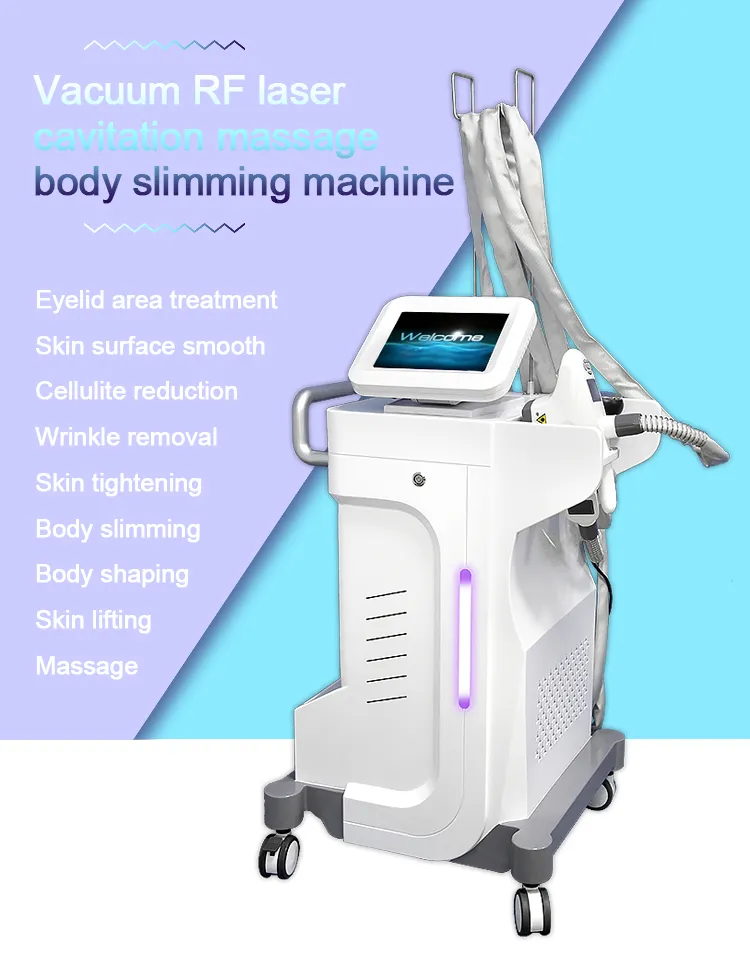

Lifting Eye Skin Tightening Whole Body Slimming Vacuum RF Roller

Infrared RF Vacuum Roller Technology

Infrared RF Vacuum Roller technology combines infrared light, bi-polar radio frequency energy and vacuum, which cause deep heating of the fat cells, their surrounding connective tissue and the underlying dermal collagen fibers. This type of efficient heating and vacuum stimulates the growth of new and better collagen and elastin which results in localized reduction in skin laxity, body volume, and an overall improvement in skin structure and texture.

Scope of Treatment

✦ Body Contouring

✦ Cellulite Removal

✦ Body Slimming

✦ Circumference Reduction

✦ Skin tightening

✦ Face Lifting

✦ Wrinkle removal

✦ Skin Texture & Tone

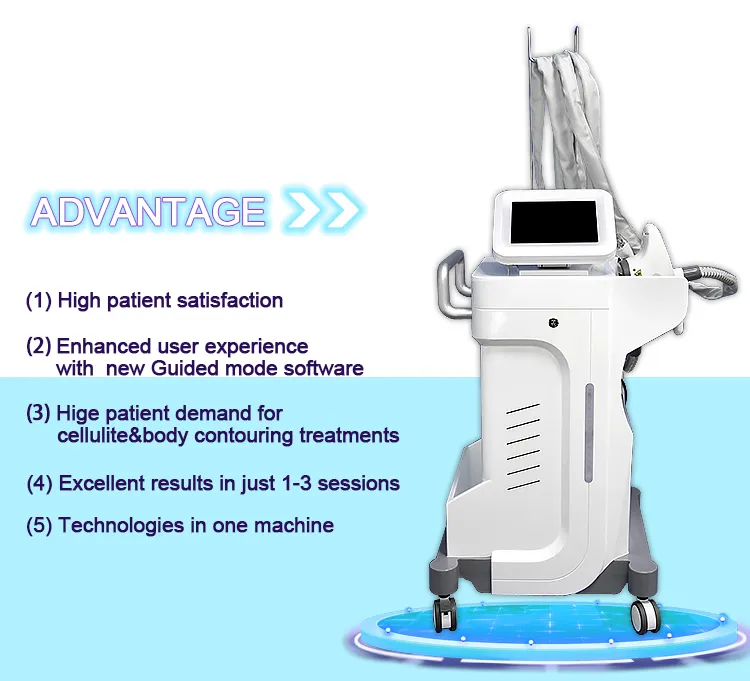

4 Technologies in One Machine

✦ Vacuum

✦ 940nm Near-Infrared Laser

✦ Bipolar RF

✦ Rollers

4 Technologies in One Machine Infographic

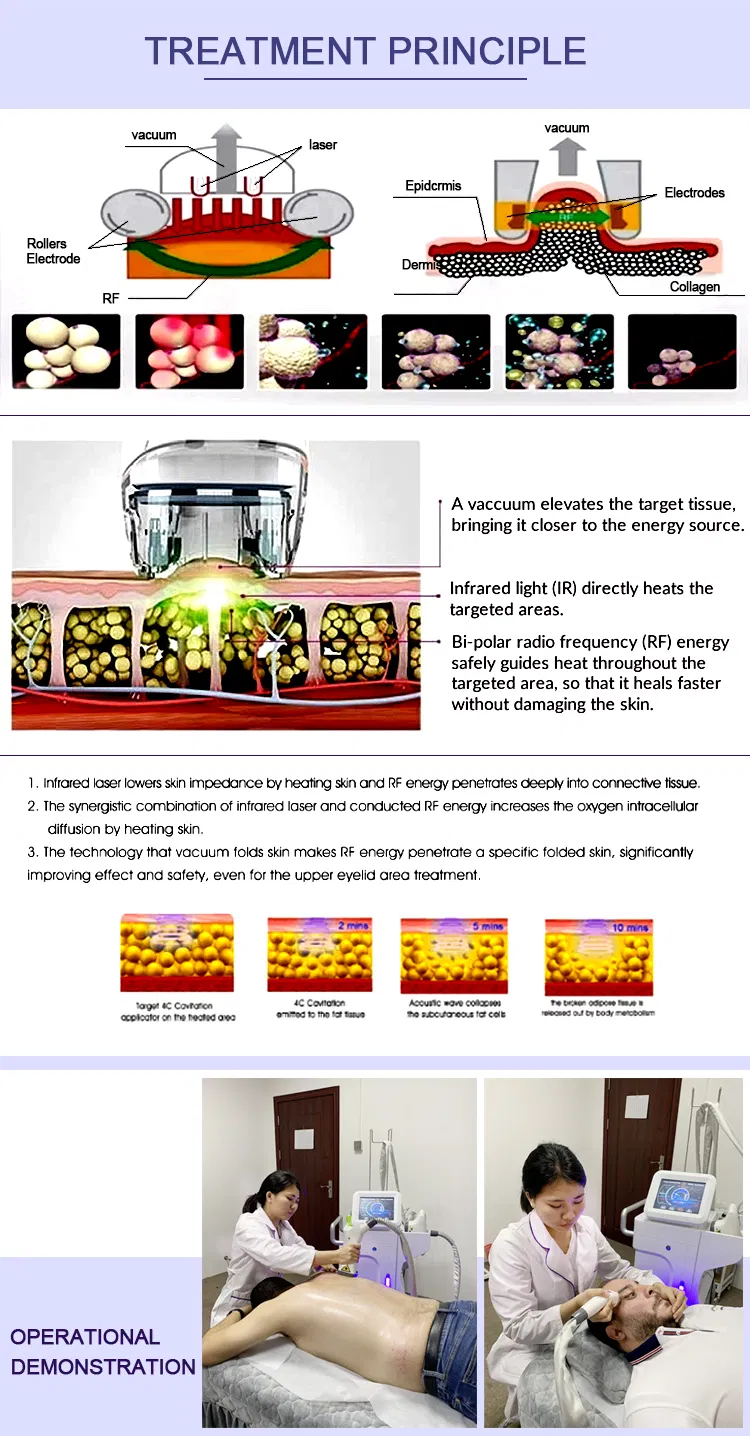

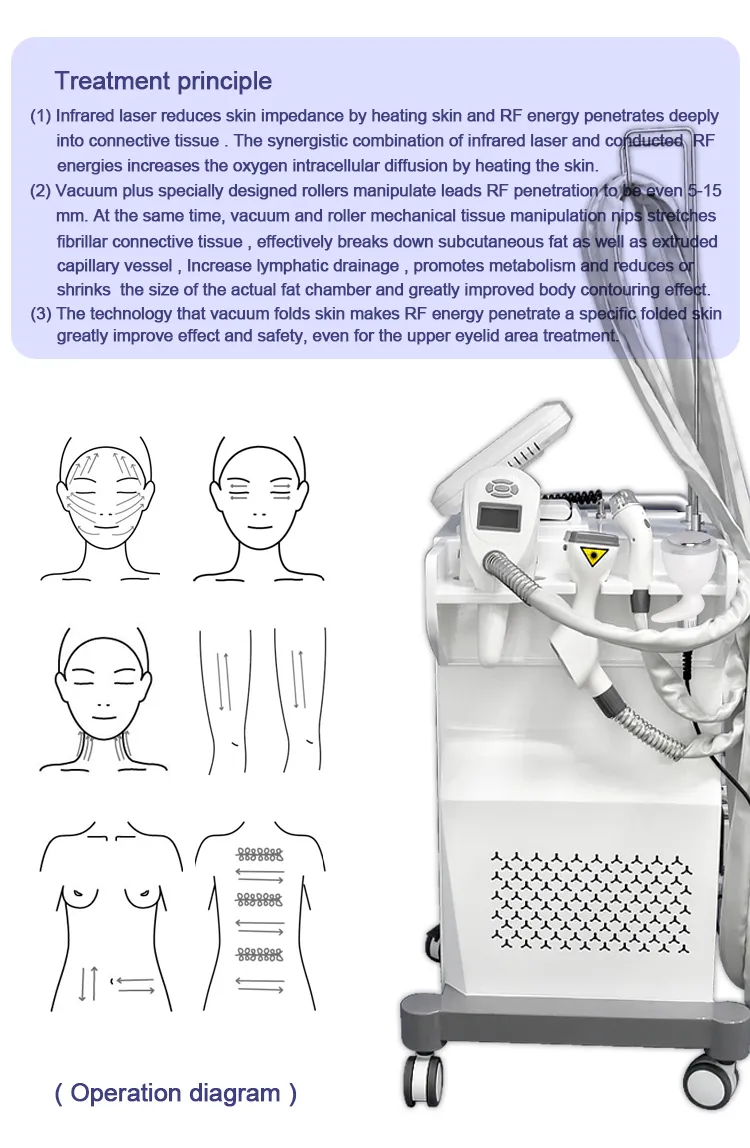

Treatment Principle and Functions

1. Synergistic Energy Delivery: Infrared laser reduces skin impedance by heating skin and RF energy penetrates deeply into connective tissue. The synergistic combination of infrared laser and conducted RF energies increases the oxygen intracellular diffusion by heating the skin.

2. Mechanical Manipulation & Lymph Drainage: Vacuum plus specially designed rollers manipulate leads RF penetration to be even 5-15mm. At the same time, vacuum and roller mechanical tissue manipulation nips and stretches fibrillar connective tissue, effectively breaks down subcutaneous fat as well as extruded capillary vessel, increases lymphatic drainage, promotes metabolism and reduces or shrinks the size of the actual fat chamber, greatly improving body contouring effect.

3. Targeted Safety: The technology that vacuum folds skin makes RF energy penetrate a specific folded skin, greatly improving effect and safety, even for the upper eyelid area treatment.

Indications

✔ Dark circle removal & eye area wrinkle/pouch improvement

✔ Upper eyelid lifting and wrinkle removal

✔ Postpartum recovery, body contouring after birth

✔ Generalized obesity, localized adiposity, fat dissolving, skin tightening (arms, legs, shoulders, back, buttocks, etc.)

✔ Alleviate arthritis pain and whole body physical therapy

✔ Stretch mark improvement

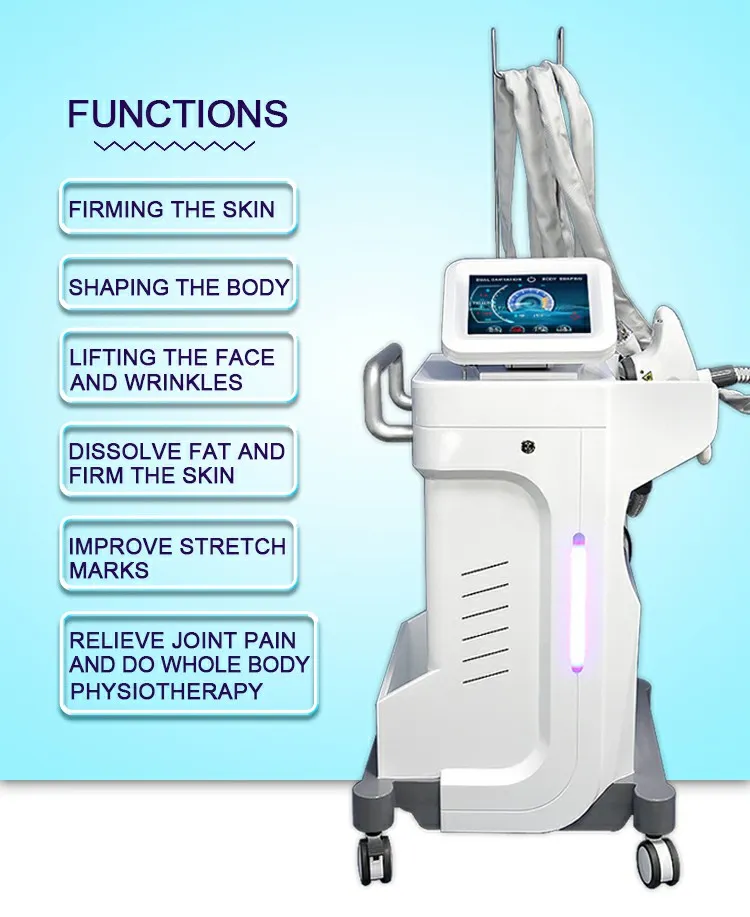

Application Focus

✔ Wrinkle removal & Skin lifting

✔ Body shaping & Body slimming

✔ Body circumference reduction

✔ Cellulite reduction & Skin surface smoothing

✔ Massage therapy

✔ Eyelid area treatment

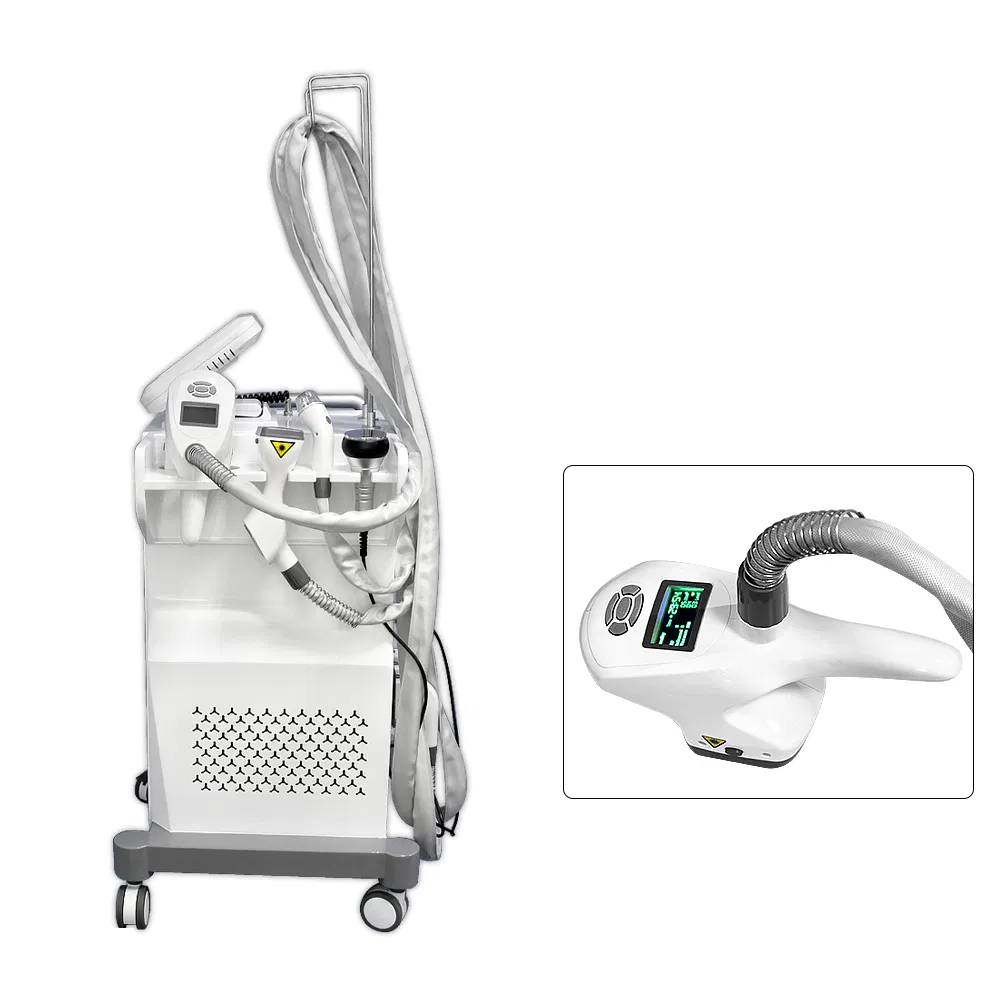

Product Display

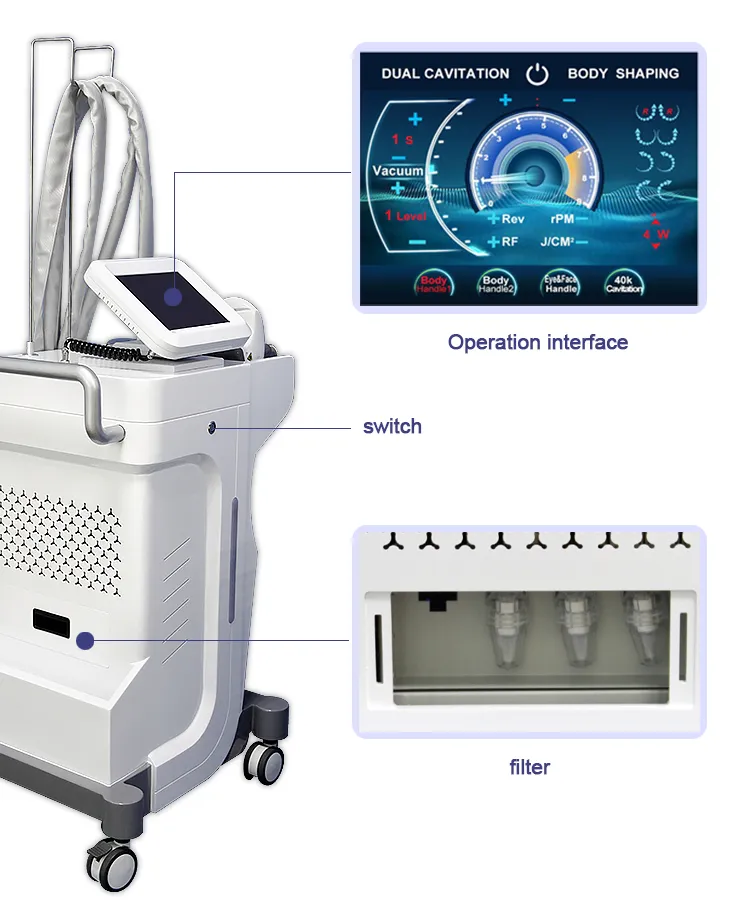

Quick Details

Note: Cavitation head is used specifically for body slimming treatments.

Courses of Treatment (For Reference)

Face Treatment Protocol

Duration: 30 minutes for each treatment.
Frequency: Once per week.
Complete Course: 10 sessions.

Eyes Treatment Protocol

Duration: 15 minutes for each treatment.
Frequency: Once per week.
Complete Course: 10 sessions.

Whole Body Treatment Protocol

Duration: 45-60 minutes (Local area: 15 minutes).
Frequency: Twice per week.
Complete Course: 10 sessions.

Facial Treatment Procedures & Preparations

Preparations:

Camera, facial treatment cleanser, essential oil for conditioning, and alcohol swab.

Preparation before treatment:

Illustrate the function of the equipment and expectations to the customer during treatment. Do not use hormonal drugs (e.g. prednisone) one week prior to treatment. Ensure no metal decorations are worn. Take photos to record under consistent lighting and positioning.

Treatment steps:

Use warm water and towel to clean the target skin area.

Apply appropriate conditioning essential oil to the treated skin.

Start up the equipment and set specific treatment parameters.

Treatment skills:

Adjust parameters according to customer comfort and skin response. Reduce energy parameters when treating over ribs and the inguinal area.

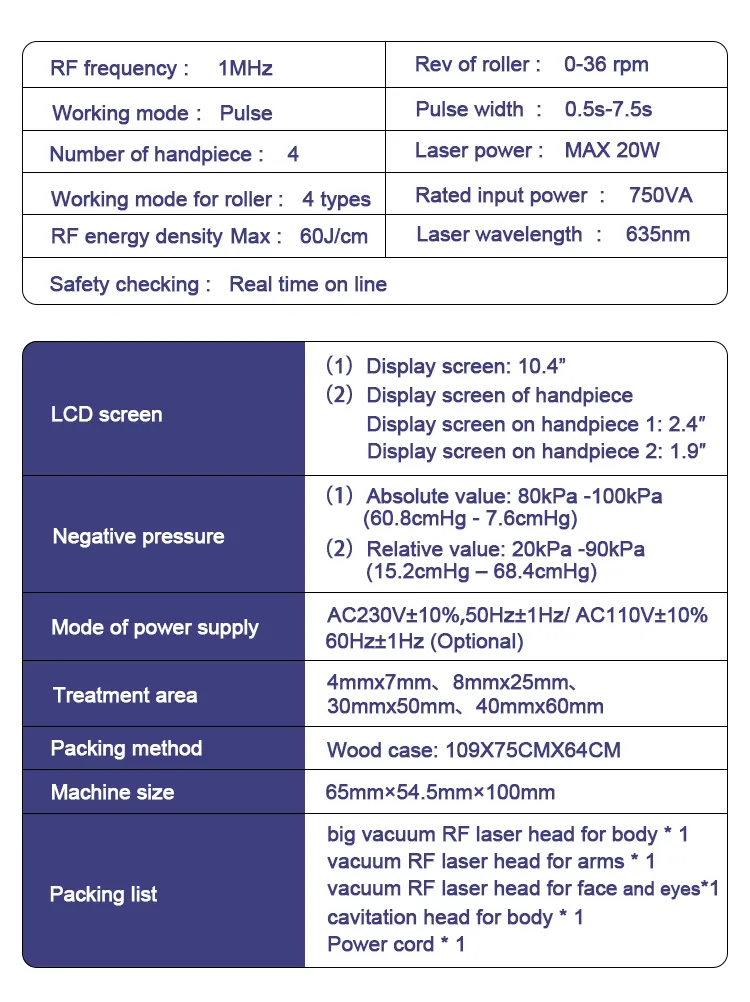

Technology Specifications

Display Screen Specs	1) Main Display screen: 10.4" 2) Display screen on handpiece 1: 2.4″ 3) Display screen on handpiece 2: 1.9″
Working Mode	Pulse
Pulse Width	0.5s - 7.5s
Negative Pressure	1) Absolute value: 80kPa - 10kPa (60.8cmHg - 7.6cmHg) 2) Relative value: 20kPa - 90kPa (15.2cmHg - 68.4cmHg)
Rev of Roller	0 - 36 rpm
Working Mode for Roller	4 types
Safety Checking	Real time on line
RF Frequency	1MHz
RF Energy Density	Max: 60J/cm
Laser Wavelength	940nm
Laser Power	MAX 20W
Number of Handpiece	4
Treatment Area	4mmx7mm, 8mmx25mm, 30mmx50mm, 40mmx60mm
Rated Input Power	750VA
Mode of Power Supply	AC230V±10%, 50Hz±1Hz / AC110V±10%, 60Hz±1Hz (Optional)

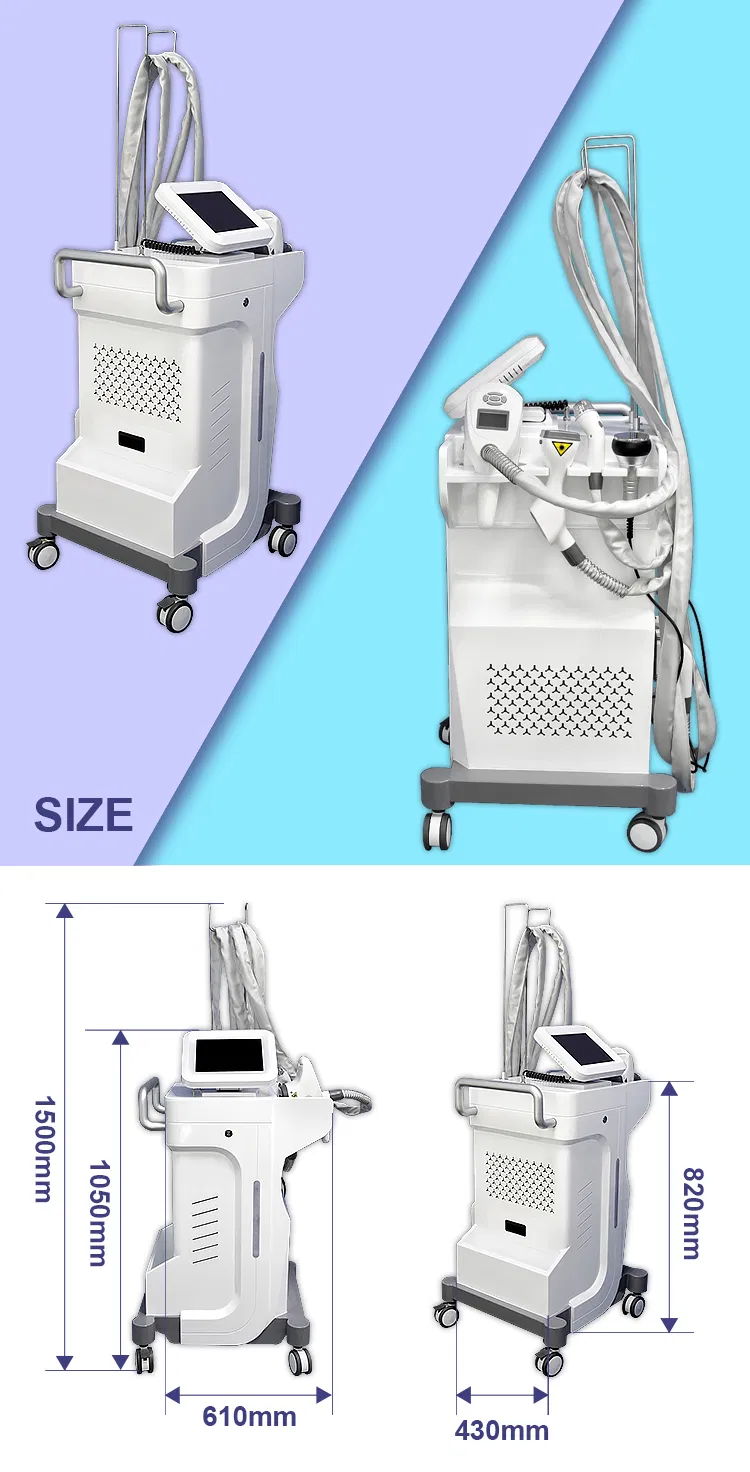

Machine Size	65mm × 54.5mm × 100mm
Packing Method	Wood case: 109X75CMX64CM

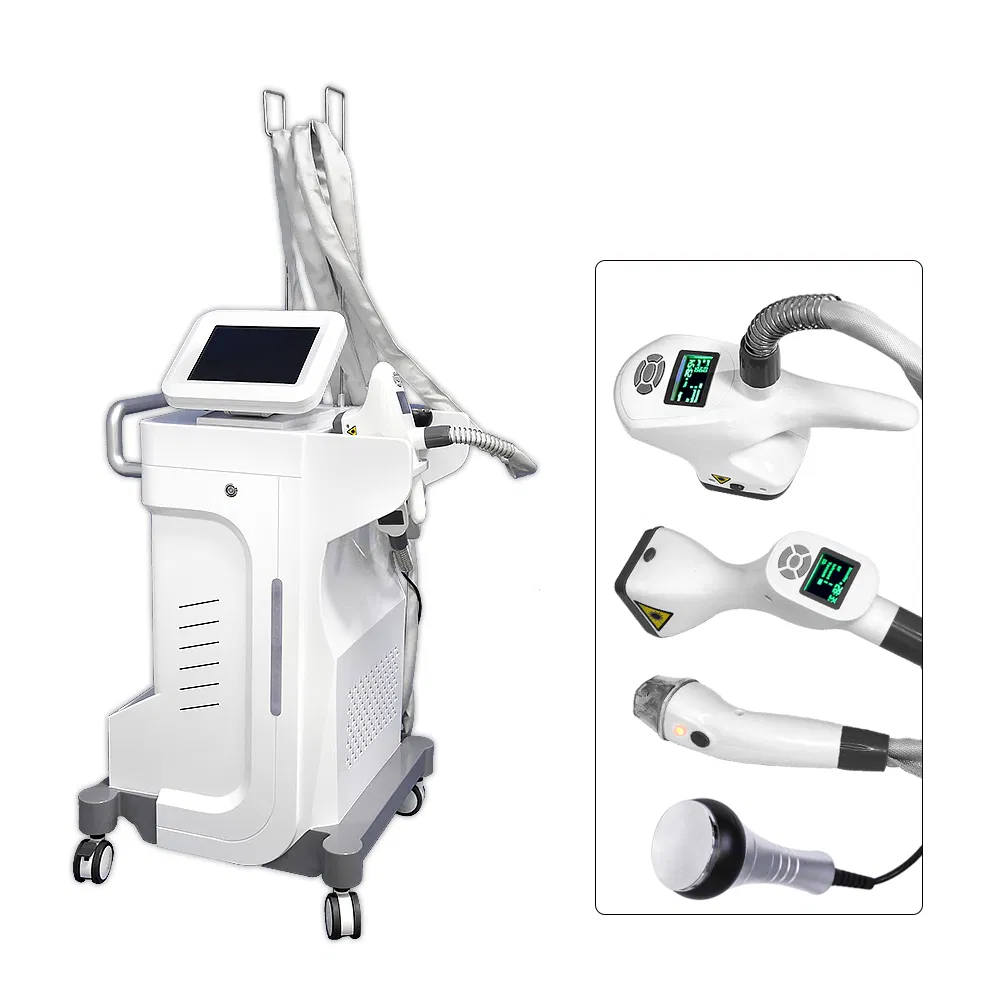

Packing List	• No. 1 big vacuum RF laser head for body * 1 • No. 2 vacuum RF laser head for arms * 1 • No. 3 vacuum RF laser head for face * 1 • No. 4 cavitation head for body * 1 • Power cord * 1

Treatment Feedback & Clinical Progress

Frequently Asked Questions

What core technologies are integrated in this machine?

This system integrates four advanced synergistic technologies in a single device: Vacuum suction, 940nm Near-Infrared Laser, Bipolar Radio Frequency (RF), and motorized mechanical Rollers. Together, they target cellulite deep within the tissue layers.

How does vacuum skin-folding technology improve safety?

The system uses vacuum suction to gently lift and fold the targeted skin. This ensures that the bipolar RF energy selectively penetrates only the folded skin area, protecting surrounding tissues and significantly enhancing both safety and efficacy—even on delicate areas like the upper eyelids.

What are the recommended session lengths for facial and eye treatments?

For facial treatments, each session is typically 30 minutes. For targeted eye treatments, 15 minutes is recommended. A standard, comprehensive course consists of 10 individual treatments scheduled once per week.

How many handpieces are included with the system?

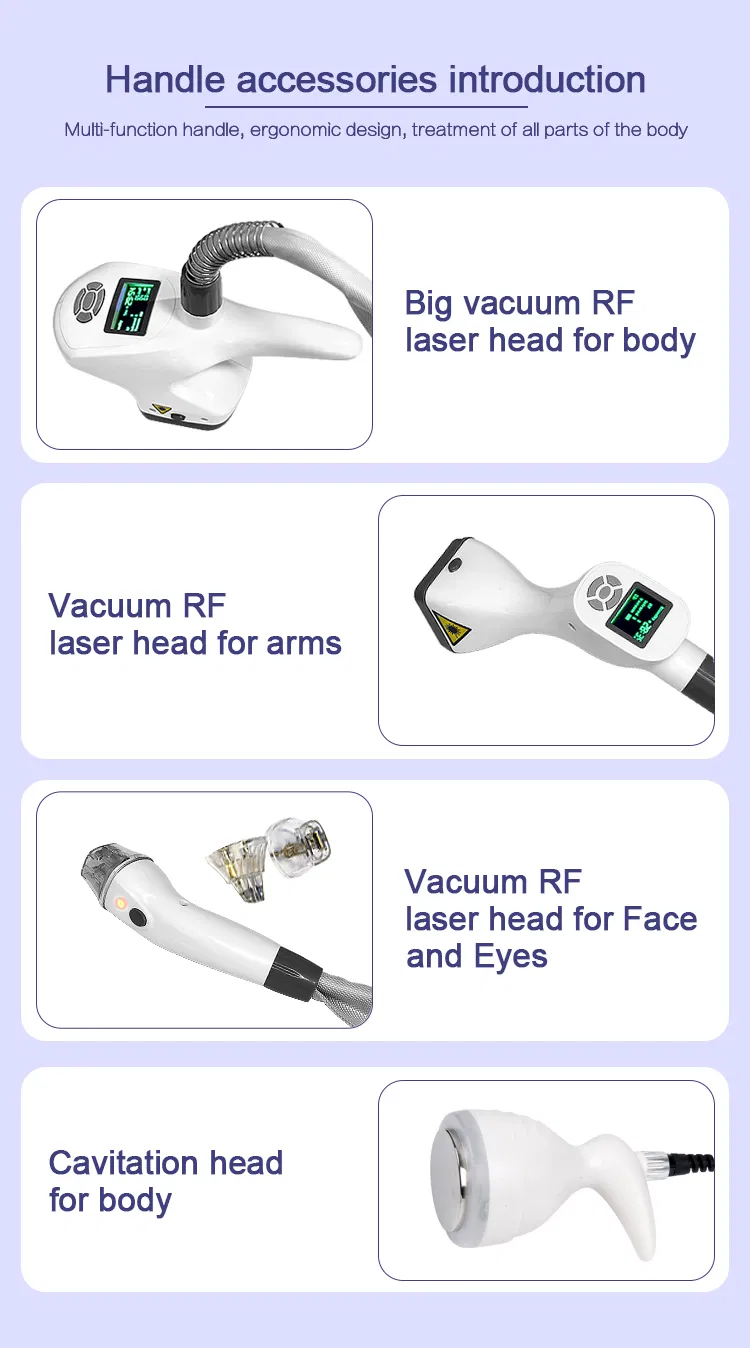

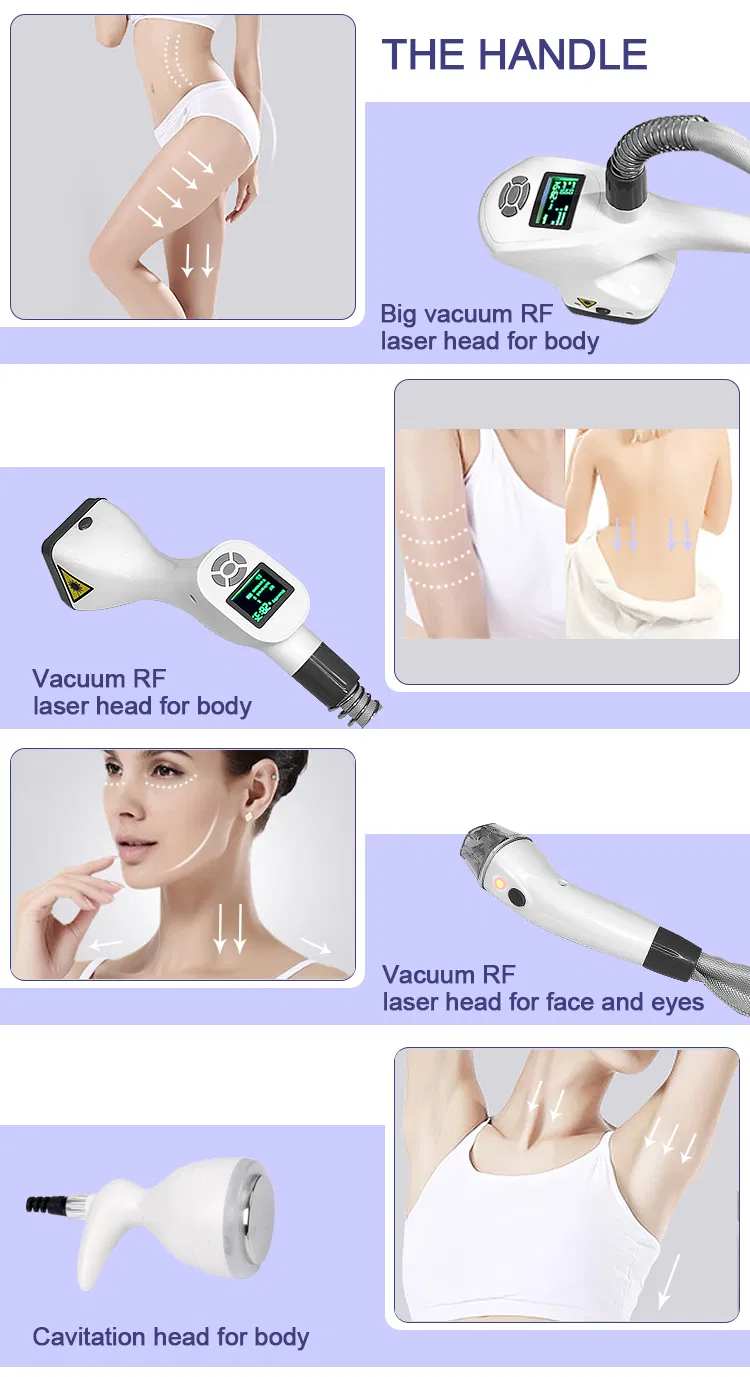

The system comes standard with 4 distinct handpieces: a large vacuum RF laser head for large body areas, a medium vacuum RF laser head for arms, a specialized small vacuum RF laser head for facial/eye zones, and an independent cavitation head for targeted deep fat body slimming.

What preparations are required before receiving a treatment?

Before treatment, ensure the targeted skin is cleaned thoroughly with warm water, and apply specialized conditioning essential oil. Clients must not wear any metal accessories or take hormonal medications (such as prednisone) for at least one week prior to the procedure.

What clinical indications can be treated with this device?

The treatment is highly effective for reducing generalized or localized adiposity, improving postpartum body contours, correcting dark circles and pouches under the eyes, lifting sagging skin, smoothing stretch marks, easing arthritic discomfort, and conducting general physical therapy.
