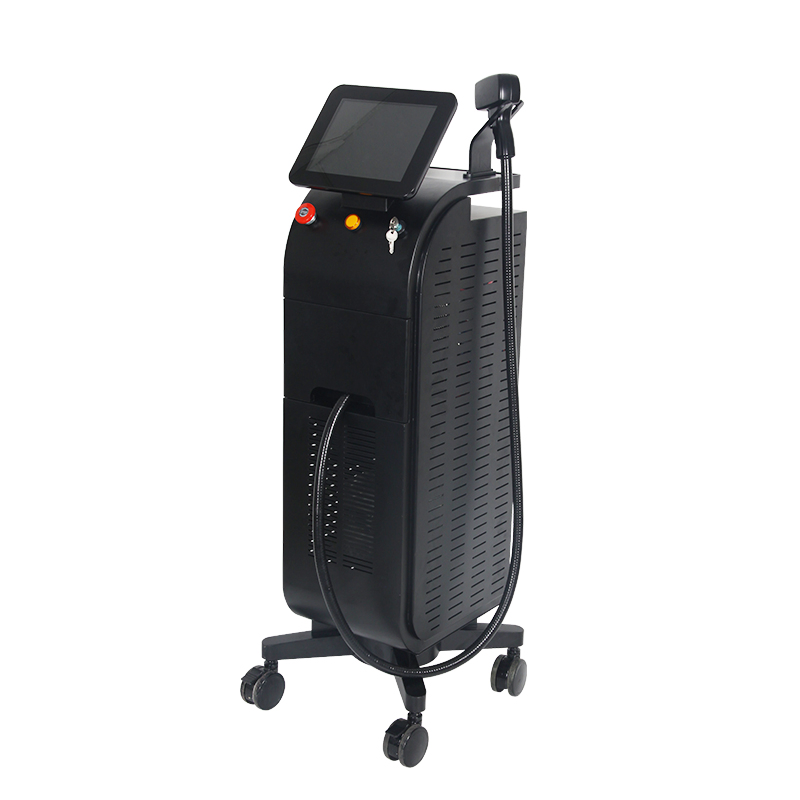

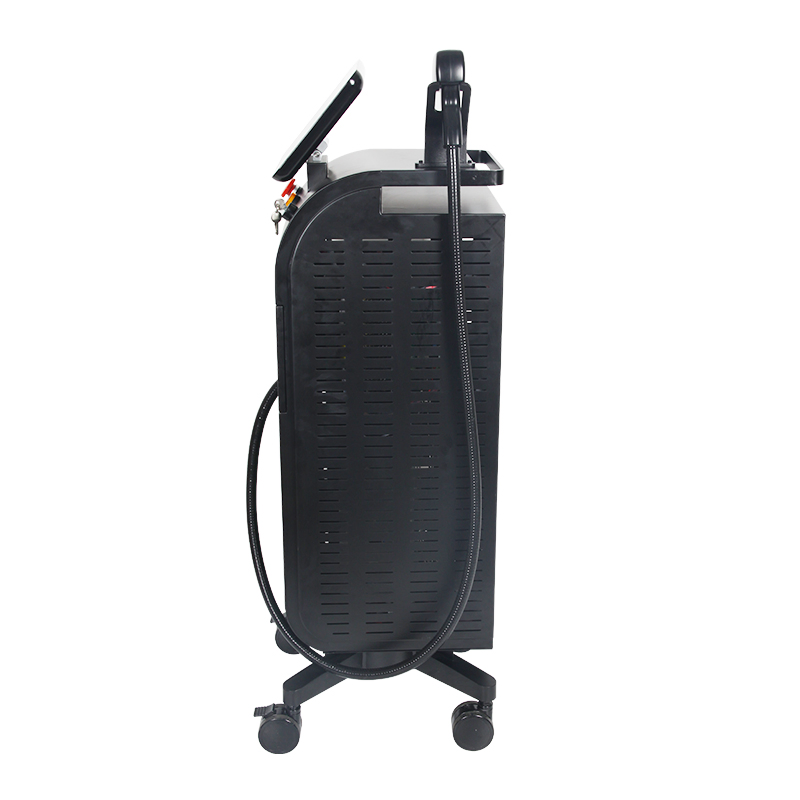

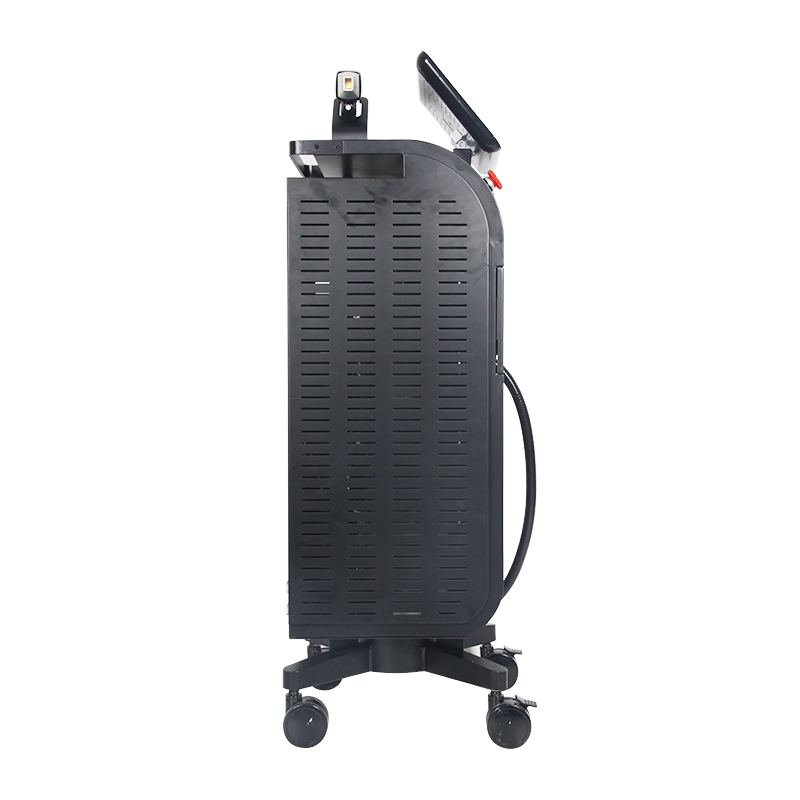

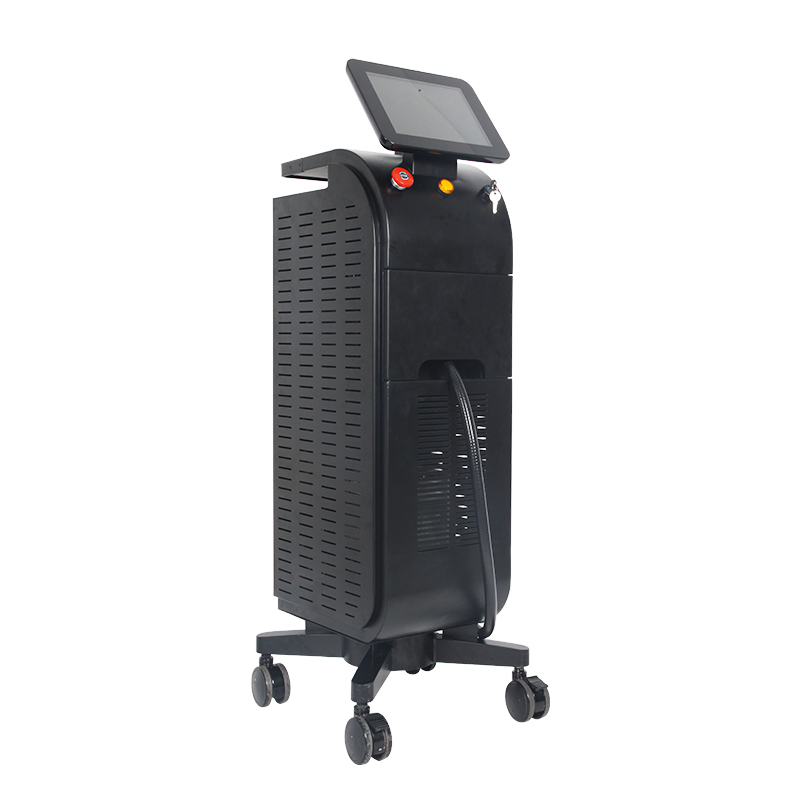

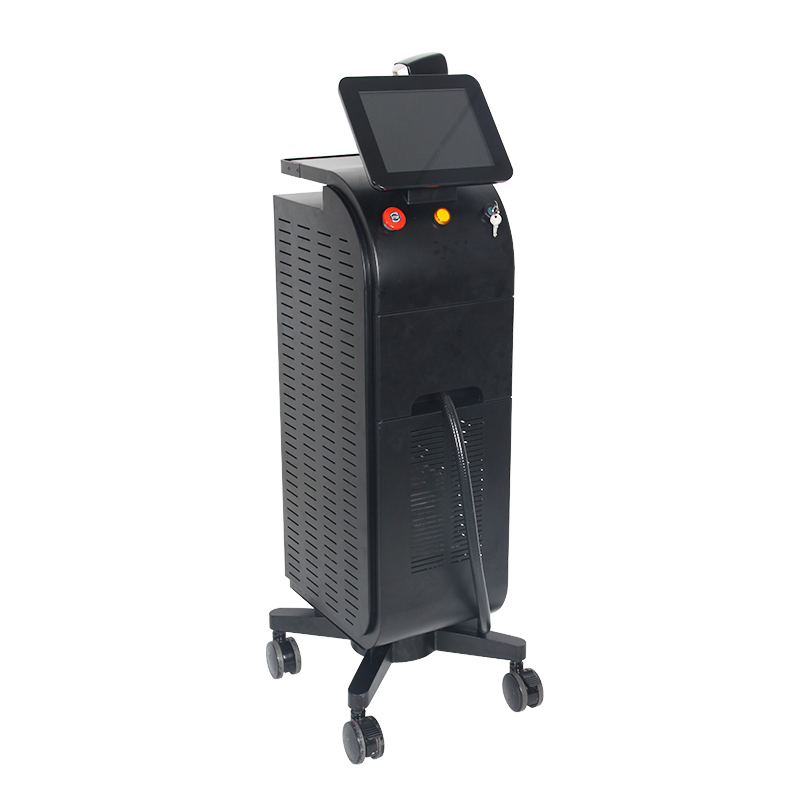

New 808nm Diode Non -Invasive Laser Hair Removal Beauty Salon Device

Customization: Available
Type: Hair Removal Instrument
Theory: IPL

Product Description

Overview & Basic Info
Model NO.DL860
ApplicationSalon
PortableNon Portable
Product NameDiode Laser Beauty Machine
FunctionPainless Hair Removal
Power2000W

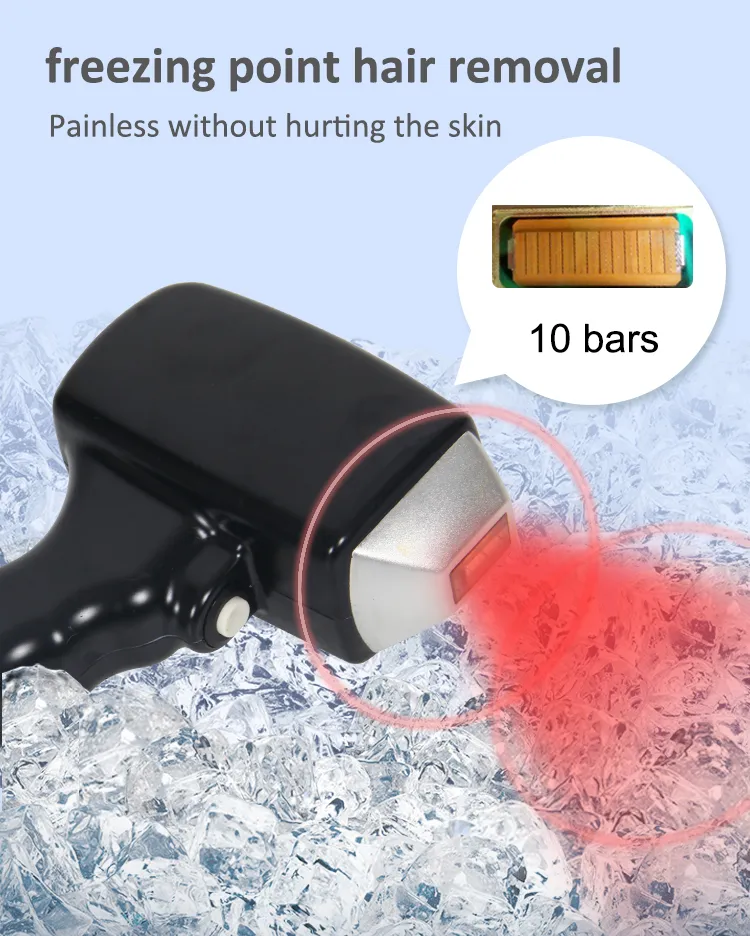

Handle Power600W with 10 Bars
Shots10 Millions
Spot Size12mm*24mm
Energy Density1-100j/Cm2
Pulse Width20-500ms
Frequency1-10Hz

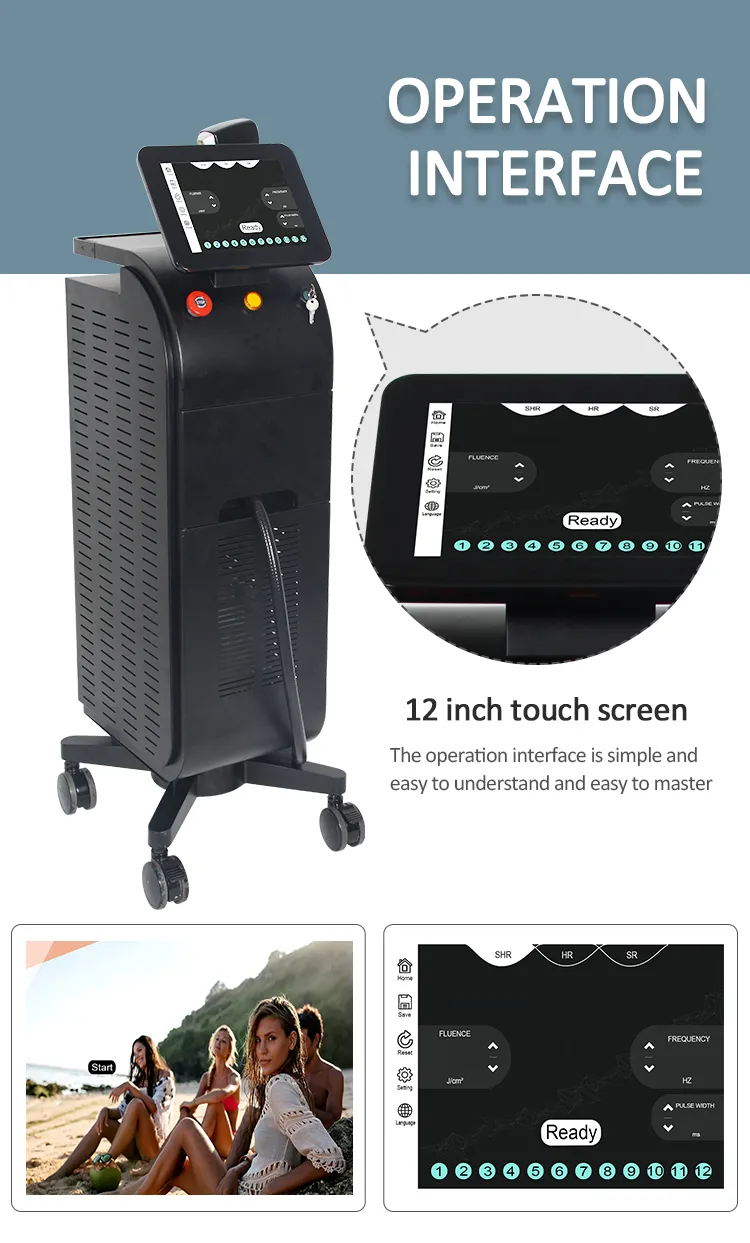

Screen12 Inch Touch Screen
Warranty12 Months
HS Code8543709990
Production Capacity300 Pieces/Months
Product Description

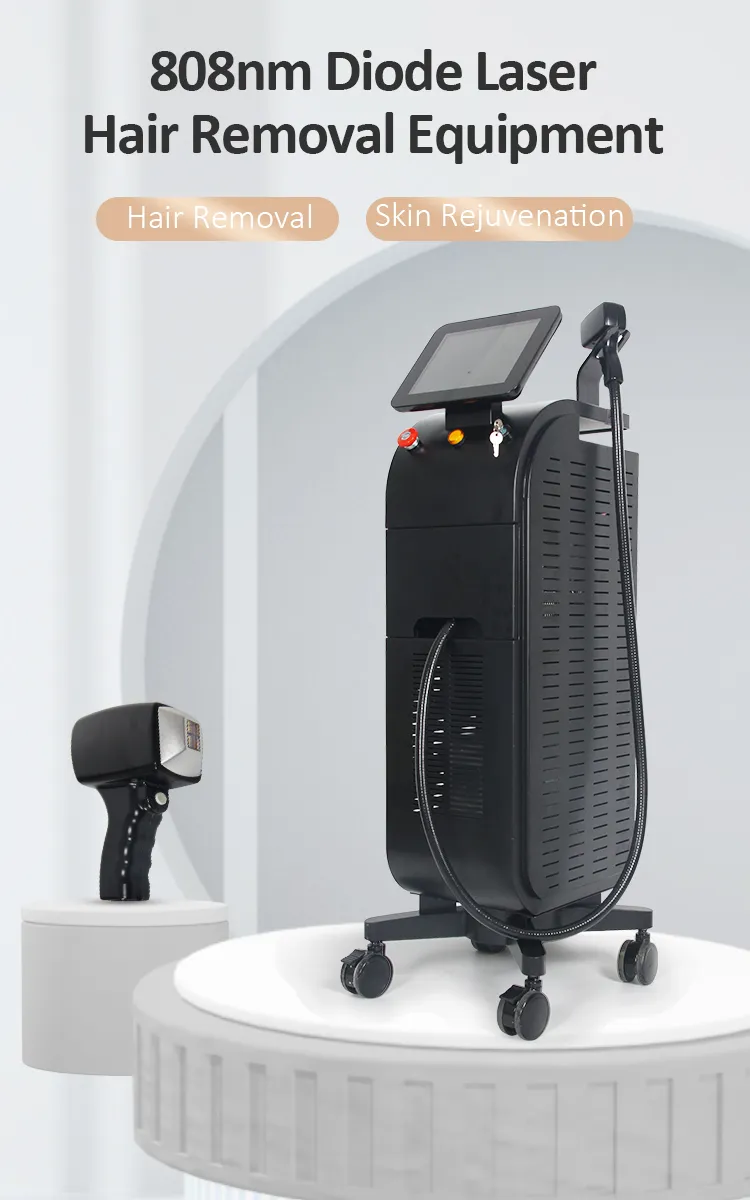

High Intensity 808nm Diode Laser Hair Removal Beauty Salon Equipment

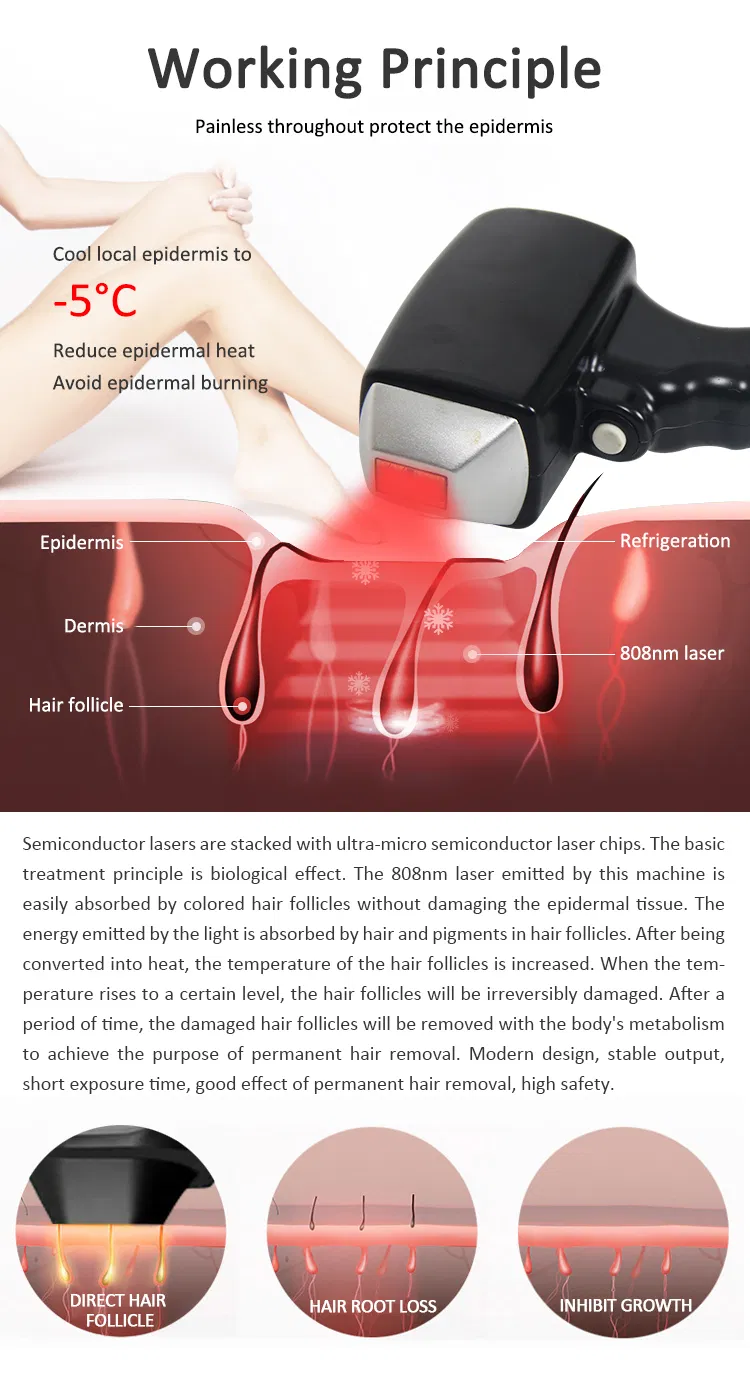

🎯 Working Theory

Semiconductor lasers are stacked with ultra-micro semiconductor laser chips. The basic treatment principle is biological effect. The 808nm laser emitted by this machine is easily absorbed by colored hair follicles without damaging the epidermal tissue. The energy emitted by the light is absorbed by hair and pigments in hair follicles. After being converted into heat, the temperature of the hair follicles is increased. When the temperature rises to a certain level, the hair follicles will be irreversibly damaged. After a period of time, the damaged hair follicles will be removed with the body's metabolism to achieve the purpose of permanent hair removal. Modern design, stable output, short exposure time, good effect of permanent hair removal, high safety.

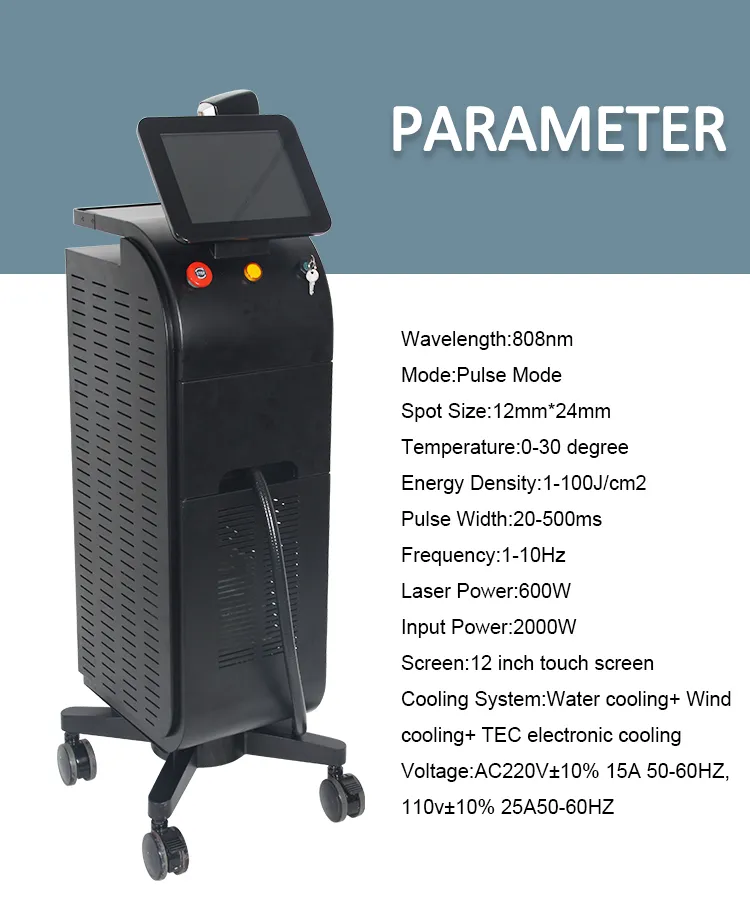

Technical Parameters
Specification Details
Wavelength808nm
ModePulse Mode
Spot Size12mm*24mm
Temperature0-30 degree
Energy Density1-100J/cm²
Pulse Width20-500ms
Frequency1-10Hz
Laser Power600W
Input Power2000W
Screen12inch touch screen
Cooling SystemWater cooling+ Wind cooling+ TEC electronic cooling
Treatment & Advantages

📋 Treatment Course

  • Underarm, Face: Interval 4-6 weeks
  • Arms, Legs, Body: Interval 4-6 weeks
  • Full Period: 4-6 sessions recommended

*Note: Depending on the hair growth cycle and site, 28 days is a standard reference cycle.

⚡ Suggested Parameters (Sliding Therapy)
Body Part Sliding Speed White Skin Yellow Skin Brown/Black Skin
Beard3-5cm/s0.5min / 5cm²0.5min / 5cm²1min / 5cm²
Armpit3-5cm/s1min / 5cm²1min / 5cm²1.5-2min / 5cm²
Bikini1-2cm/s1min / 5cm²1min / 5cm²1.5min / 5cm²
Legs3-5cm/s1min / 5cm²1min / 5cm²1.5min / 5cm²
Frequently Asked Questions
Is the 808nm diode laser treatment painful?
The treatment is designed for maximum comfort. With the TEC electronic cooling system, the sapphire tip stays between 0-30 degrees, making the process virtually painless compared to traditional methods.
How many sessions are needed for permanent results?
Generally, 4 to 6 sessions are required to achieve permanent hair removal, as the laser only targets hair in the active growth (anagen) phase.
Can this machine be used on all skin types?
Yes, the 808nm wavelength is highly effective for a wide range of skin types, from white to dark skin, by adjusting the pulse width and energy density.

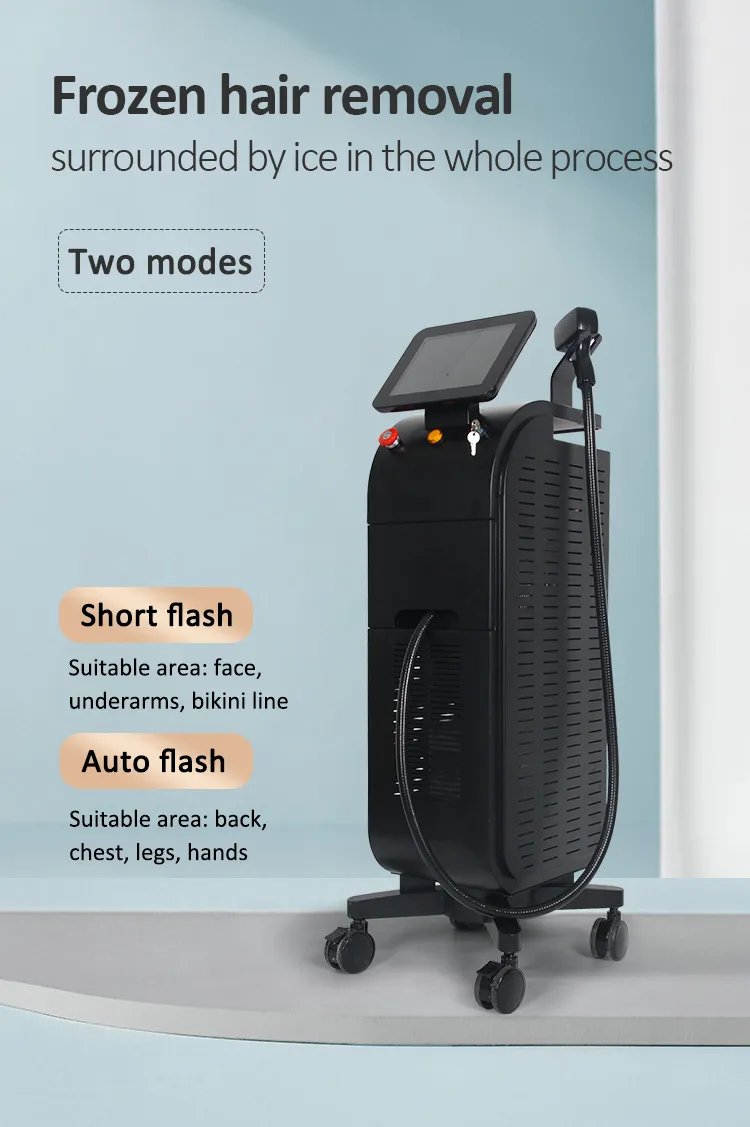

What is the difference between Single Point and Sliding therapy?
Single point therapy uses higher energy at a lower frequency for specific areas, while Sliding therapy (In-Motion) uses lower energy at a higher frequency (up to 10Hz) for faster coverage of large areas.
Is there any downtime after the procedure?
There is no downtime. Most users can return to their normal activities immediately. Some slight redness may occur but usually disappears within a few hours.
Why is the cooling system important?
The combination of water, wind, and TEC cooling ensures the laser bars operate at a stable temperature, extending the machine's lifespan and protecting the patient's skin from heat.
